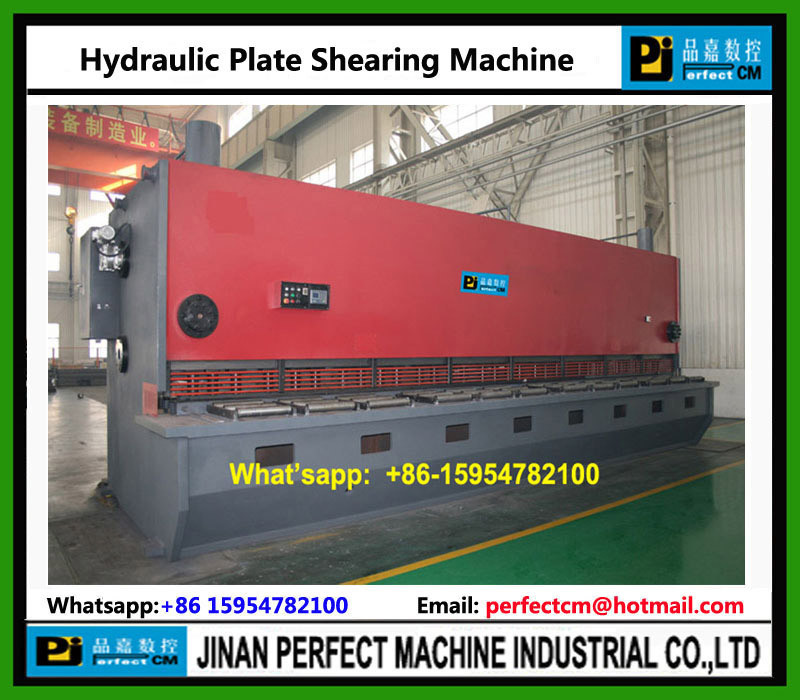

Hydraulic Guillotine Plate Shearing Machine

Hydraulic Guillotine Plate Shearing Machine

    • Hydraulic Guillotine Plate Shearing Machine
    • Hydraulic Guillotine Plate Shearing Machine
  • Hydraulic Guillotine Plate Shearing Machine

    Product Details:

    Place of Origin: China
    Brand Name: PERFECT
    Certification: ISO9001-2008
    Model Number: QC11Y-6x3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD
    Packaging Details: STANDARD
    Delivery Time: 10
    Supply Ability: 100
    Detailed Product Description
    Minimum Oeder Quantity: 1 Payment Terms: TT
    Supply Aility: 10000

    Hydraulic Guillotine Plate Shearing Machine


    Structural features:

    1. Machine frame and blade frame are welded structure, vibration to eliminate stress, can maintain good accuracy.
    2. Series cylinder structure, good synchronization performance, and can adjust the angle of shear, and the shearing quality is very high.
    3. Adopting the three-point support rolling clamping rail, to maintain good accuracy, the blade frame running smoothly, and can quickly adjust the blade gap.
    4. The blade frame’s stroke can adjust stepless, in order to improve production efficiency.
    5. Upper blade frame is with introversion structure, easy blanking, to improve the accuracy of the workpiece.
    6. The overall rectangular blades, four cutting edges can be used, with long service life.
    7. Digital display backgauge device adopts Nanjing ESTON E10 NC system, clear and accurate showing backgauge stroke data.
    8. Motorized backgauge provides forward, backward and manual fine-tuning these three regulatory function, easy operation.
    9. With a variety of operating functions, debugging, use, and easy maintenance.
    10. Electromechanical interlock safety device with emergency stop button installed on the right side of operation panel, front wallboard and removable foot switch. Security fence and etc. Device are installed in the throat parts of machine, worktable operating parts and the rear of machine; which is safe and reliable.


    Technical Specifications:


    Model

    Model QC11Y-6x3200

    Max.Shearing Thickness

    6mm

    Min.Shearing Thickness

    1mm

    Max.Shearing Width

    3200mm

    Plate Yield Strength

    450 Mpa

    Cutting Angle

    0.5~2.5° (Ajustable)

    Throat Depth

    120mm

    Stroke Times

    10-30 Times/Min

    Max. Shearing Force

    500KN

    The Distance Between The Worktable And The Ground

    850mm

    Backgauge Scope

    20-700mm

    Motor

    Model

    Y160L-4-B35

    Power

    7.5KW

    Rotation Speed

    1460 r/Min

    Machine Outline

    3930x2280x2265 Mm

    Machine Weight

    6600 Kgs
