CNC Angle Line for Power Transmission Tower (BL1010)

Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number BL1010
Minimum Order Quantity 1
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 100
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
High Light

cnc angle line power transmission tower line

,

cnc punching machine cutting machine marking machine

,

cnc drilling machine shearing machine notching machine straightening machine

Leave a Message
Product Description

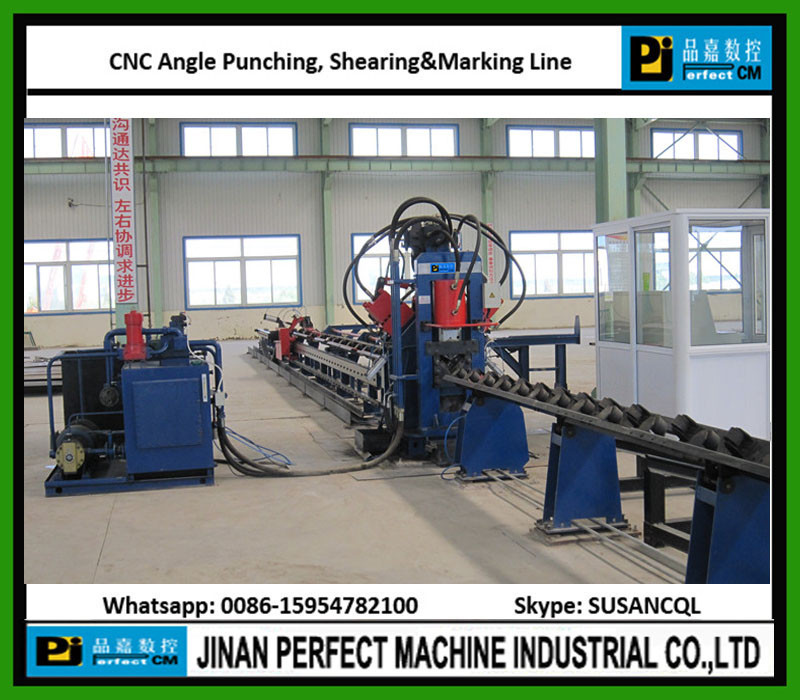

CNC High Speed Angle Marking, Punching And Shearing Line


Technical Data:

Model

BL1010

Functions

Punching, marking, shearing

Angle size (mm)

40х40х3~100х100х10

Max. Punching (dia. х thi.) (mm)

Φ26х10 (8mm, Q345)

Punching force (kN)

600

Marking force (kN)

800

Cutting force (kN)

1000 (Q345, 90х8mm)

Max. length of blank (m)

12

Max. length of finished (m)

12

Punches per side

2

Group of Marking letters

4

Dimension of letter (mm)

14×10×19

CNC axes

3

Cutting mode

Single blade cutting

Feeding speed of angle (m/min)

80

Processing precision

Accordance with GB2694

Program function

Real time fault display

Programming mode

Input by keyboard, RS232 interface,

floppy disk and USB interface

Program function

Error display



Technical Charecteristics:


1. Integrateded machine with mechanical, electrical and hydraulic elements;
2. Numerical controlling, three axes servo motor feeding;
3. Infinite gaugelines and no limits of the hole rows;
4. Imported electronic, hydraulic and pneumatic elements;
5. Easy programming, connectable with data files generated directly by copying the specimen;
6. Diagrammatic display of workpiece;
7. Adapted to angles with great bending deflection;


Advantages:


1. Rigid and compact structure
2. High productivity with automatic marking, punching, cutting off and stacking operations;
3. High meterial utilization with optimum pattering;
4. Low labour working strength and high precision of workpieces.
