CNC Drilling Machine Used in Heat Exchanger/Pressure Vessel Industry

CNC Drilling Machine Used in Heat Exchanger/Pressure Vessel Industry

CNC Drilling Machine Used in Heat Exchanger/Pressure Vessel Industry

Product Details:

Place of Origin: China
Brand Name: PERFECT
Certification: ISO9001-2008
Model Number: PHD4040

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Packaging Details: STANDARD
Delivery Time: 10
Supply Ability: 100
Detailed Product Description
Minimum Oeder Quantity: 1 Payment Terms: TT
Supply Aility: 10000

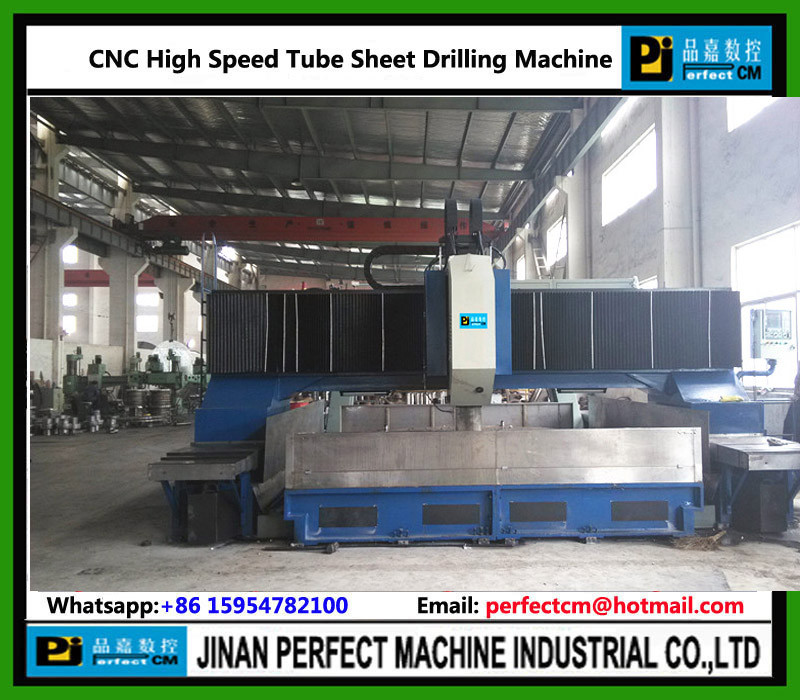

High Speed CNC Tube Sheet Drilling Machine



Applicable Industry:

Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. And large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.


Technical data, please check the following form:

Name of parameter Item Value
Max. distance between hole centers Length Width 4000x4000mm
Max. thickness of workpiece   250mm
Worktable Width of T-slot 28mm
Vertical ram type drilling head Quantity 2
Morse Taper BT50
Max .drilling diameter. (Normal carbon steel) 40mm(Carbide drill head)
50mm(High-speed steel twist drilling head
Drill depth/drill diameter 5(Carbide drill head)
Rotation speed of spindle(stepless frequency conversion) 30_2400r/min

Should Your Excellency need more information about us, please send us your inquiry.

Skype: susancql

Mobile: 0086-15954782100

GTalk: jnfastcnc

E-mail: chengsusan2004 at hotmail.com

Thanks and Best Regards,



Ms. Susan
