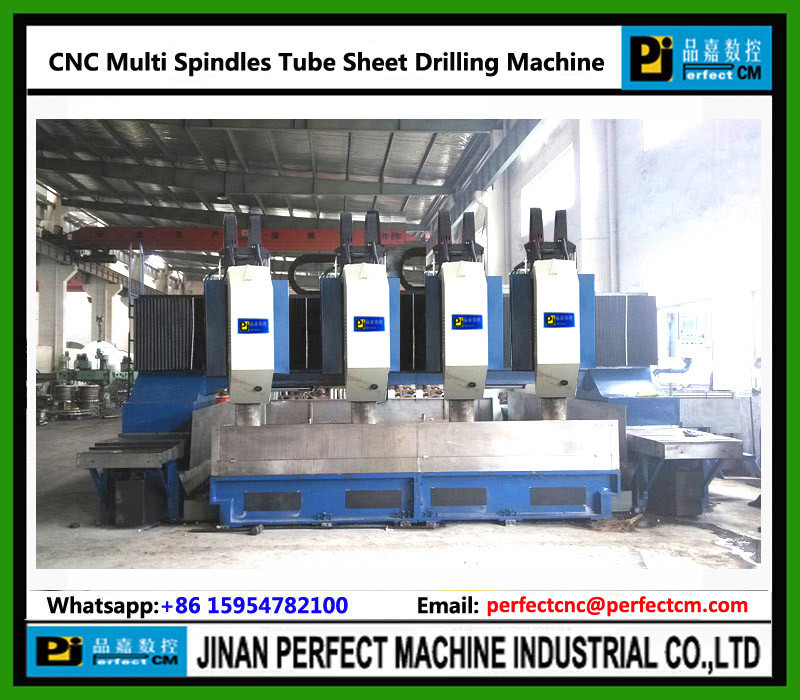

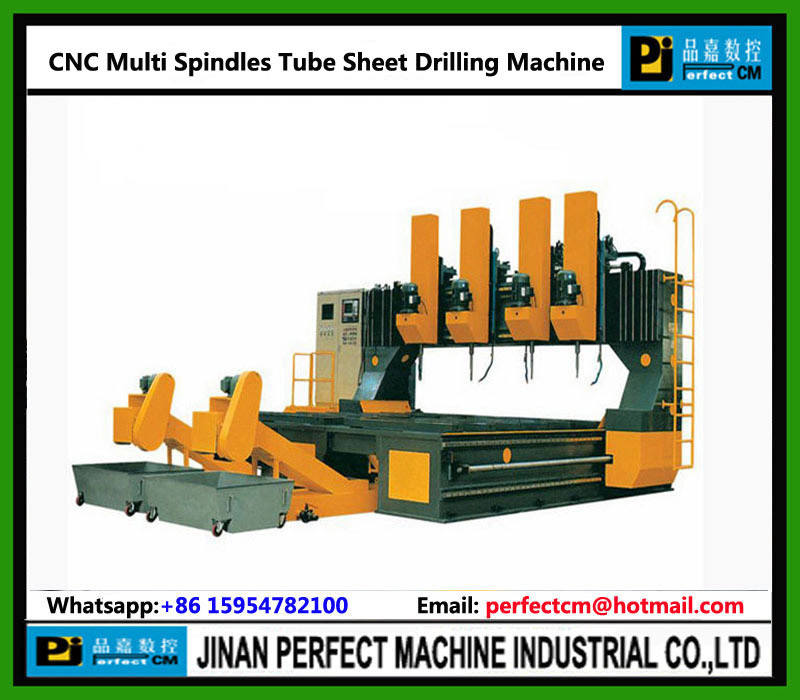

Multi Spindles CNC High Speed Tube Sheet Drilling Machine (Model PHD5050-4)

Multi Spindles CNC High Speed Tube Sheet Drilling Machine (Model PHD5050-4)

Multi Spindles CNC High Speed Tube Sheet Drilling Machine (Model PHD5050-4)

Product Details:

Place of Origin: China
Brand Name: PERFECT
Certification: ISO9001-2008
Model Number: PHD5050-4

Payment & Shipping Terms:

Price: USD
Packaging Details: STANDARD
Delivery Time: 10
Supply Ability: 100
Minimum Order Quantity: 1
Detailed Product Description
Minimum Oeder Quantity: 1 Payment Terms: TT
Supply Aility: 10000

High Speed CNC Tube Sheet Drilling Machine



Applicable Industry:

Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. And large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.


Technical data, please check the following form:

Name of parameter Item Value
Max. distance between hole centers Length Width 5000X5000mm
Max. thickness of workpiece   250mm
Worktable Width of T-slot 28mm
Vertical ram type drilling head Quantity 4
Morse Taper BT50
Max .drilling diameter. (Normal carbon steel) 40mm(Carbide drill head)
50mm(High-speed steel twist drilling head
Drill depth/drill diameter 5(Carbide drill head)
Rotation speed of spindle(stepless frequency conversion) 30_2400r/min
