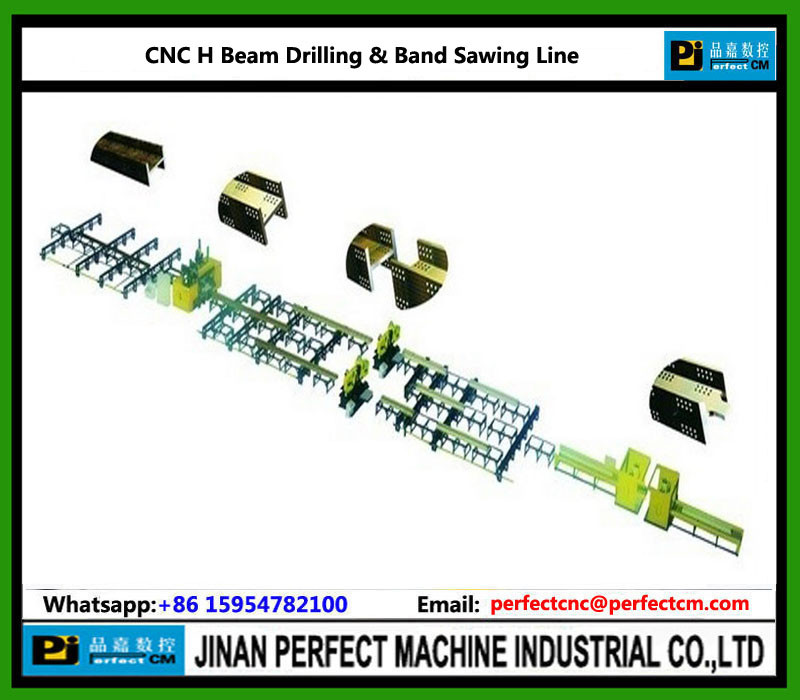

CNC H Beam Drilling and Band Sawing Line

Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number SWZ1000+BS1000
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
High Light

h beam line

,

cnc drilling machine

,

h beam drill line

Leave a Message
Product Description

CNC H Beams Drilling Machine Line





FEATURES:


1. Three slipway type CNC drilling spindles respectively on the up, left & right, can drill holes simultaneously.

2. CNC & PLC systems, CRT display.

3. Eight CNC axes.

4. Coordinates of drilling can be directly transferred to CAD/CAM.

5. Automatic chip removal, circular coolant.

6. Laser alignment conveniently.



SPECIFICATIONS:



Model SWZ1000/SWZ1250 + BS1000/BS1250



Max. H Beam size: (web height Flange width) (mm) 1000x500 / 1250x600
Min. H Beam size: 150x75mm
Auto feeding
Length: 3000mm
Manual feeding: 690mm
Max. Workpiece weight : 000 / 10000kgs
Thickness of web & flange: 80mm
Vertical drilling
dia.: 12~ 33.5mm
Horizontal drilling dia.: 12~ 26.5mm
Drilling spindles No. Of spindle One spindle on each of three sides (top, left, right) Total: 3 spindles
Rotation speed (stepless speed adjustment):180~650rpm



We welcome customers to visit our factory at any time. No wait, please order now!



Should Your Excellency need more information about us, please send us your inquiry.



Skype: susancql

Mobile: 0086-15954782100 (what'sapp)

GTalk: jnfastcnc

E-mail: perfectcnc@perfectcm.com

Website: www.perfectcm.com



Thanks and Best Regards,



JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
