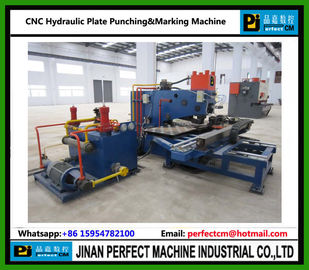

CNC Hydraulic Plate Punching & Marking Machine (Model PP103/PP104)
Applicable Industry:
Special CNC machine for punching and marking of steel plates in the field of steel tower industry and steel structure. It is also used to punch and mark of steel plates of other industries.
Specifications:
Model | PP103 | PP104 |
Max Size Of Work Piece L×W(Mm) | 1500×800 | 1500×1000 |
Max. Diameter Of Punching (Mm) | Φ26 | Φ26 |
Plate Thickness Of Punching (Mm) | 6-25 (Q 235) | 6-25 (Q 235) |
Punching Force (KN) | 1000 | 1000 |
Marking Force (KN) | 800 | 800 |
Min. Distance Between Hole And Plate Edge (Mm) | 25 | 25 |
Dimensions Of Characters (Mm) | 14×10×19 | 14×10×19 |
Quantity Of Character | 12 | 12 |
Die-Stations | 3 | 3 |
Precision | Accordance With GB2694 | Accordance With GB2694 |
Programming Mode | Input By Keyboard, RS232 Interface, Floppy Disk And USB Interface | Input By Keyboard, RS232 Interface, Floppy Disk And USB Interface |
Overall Dimensions (L×W×H ) mm |
3200×3000×1900 | 3500×3000×1900 |
