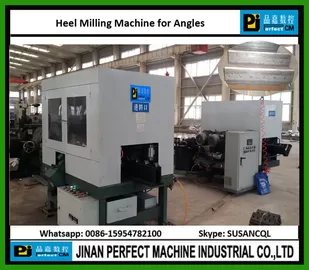

Heel Milling Machine for Angle (Model QC200/QC250)

Heel Milling Machine for Angle (Model QC200/QC250)

Heel Milling Machine for Angle (Model QC200/QC250)

Product Details:

Place of Origin: China
Brand Name: PERFECT
Certification: ISO9001-2008
Model Number: QC200/QC250

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Packaging Details: STANDARD
Delivery Time: 10
Payment Terms: TT L/C
Supply Ability: 1000
Contact Now
Detailed Product Description

Heel Milling Machine for Angle (Model QC200/QC250)



Machine Usage & Characteristics:

1. The machine uses high-speed milling for angle back and root of angle milling processing technology.

2. Greatly improving the milling production efficiency, ten times efficient than the traditional planer.

3. Easily operate, low requirement for the worker’s operation level.

4. Greatly reducing the labor intensity, high degree of automatic machinery, it can continuously feed angle.

5. Compared with traditional planer which length of processing is restricted, the new machine makes the process more flexible. It is not necessary to use clamping device to make the process more convenience and more efficient.

6. The machine is easy to operate, flexible regulation and stable operation.

7. The new design we use air cooling system, instead of cutting fluid cooling.



Specifications:

Model

QC200

QC250

Processing Angle Size

L40~L200

L63~L250x32

Processing Angle Length

Min. 300mm; Max. Without Limit

Min. 350mm; Max. Without Limit

Power-3phrase AC 380V50Hz

13.4KW

15KW

Main Spindle Speed

460r/Min

450r/Min

Spindle Axis Quantity

Two

Two (Newly updated Stype)

Automatic Feeding Speed (Adjustable)

100-500mm/Min

100-500mm/Min

Overall Dimension

2000X2000X1200 Mm

2650x1850x1750mm
