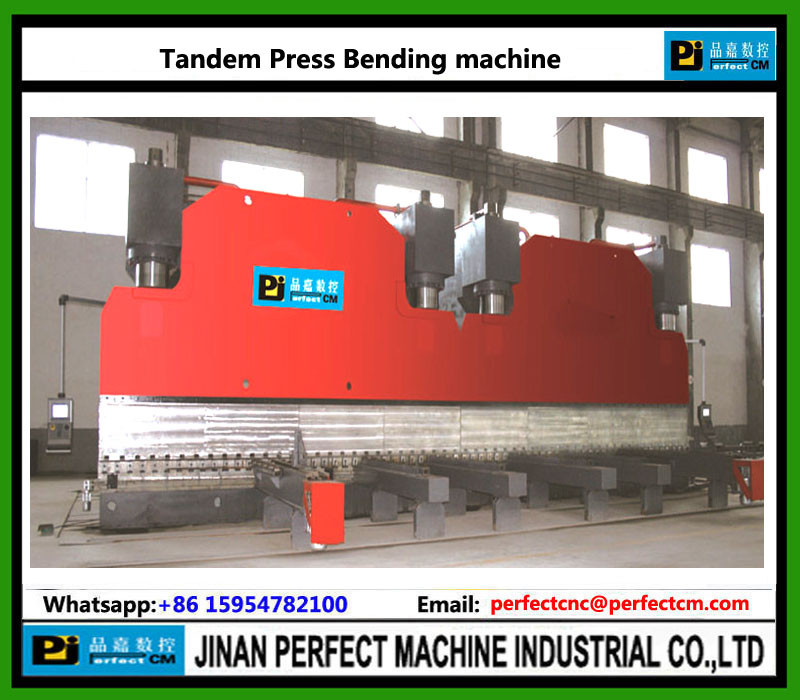

Tandem 6m+6m Press Bending machine

Tandem 6m+6m Press Bending machine

Tandem 6m+6m Press Bending machine

Product Details:

Place of Origin: China
Brand Name: PERFECT
Certification: ISO9001-2008
Model Number: WD Series

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Packaging Details: STANDARD
Delivery Time: 10
Supply Ability: 100
Contact Now
Detailed Product Description
Minimum Oeder Quantity: 1 Payment Terms: TT
Supply Aility: 10000

Tandem 6m+6m Press Bending machine


Features:
  • (1)The two oil cylinders are fixed on right and left wallboard, have reasonable force, the bottom dead point is positioned by the block in oil cylinder so have a simple structure.
  • (2)A hydraulic system is used for the machine, top driven system; the speed can be adjusted in a large range, reliable.
  •
  • (3)The position of the back gauge and the stroke of the ram are displayed by digital displays, and can be adjusted manually.
  •
  • (4)The dies are equipped with adjusting wedges of high precision
  •
  • (1)Ram synchronization during the stroke is controlled by a mechanical torque synchronic system, gauges balanced, has high precision, if the length is above 4 meters, two machines can work together.
  •
  • (5)We use Holland DELEM or Sweden CYBELEC CNC Control system, which can achieve bending angle Graphical programming, angle compensation correction, automatic calculation of bending pressure and automatically adjustment, automatic calculation of table deformation compensation amount, the expending length of the workpiece, press down the bending pressure, opening distance, back gauge automatic concessions, and other features.We welcome any inquiry to us at any time. thanks.

Technical Specifications:

Model Units 2- WD67X-250/6000
Nominal Pressure KN 2X2500
Worktable Length mm 2x6000
The Distance Between Uprights mm 5000
Throat Depth mm 400
Slider Stroke mm 250
Max Opening Height mm 500
Max. Working Pressure of Hydraulic System MPa 2x23.5
Main Motor Power kW 2x18.5
Slider Stroke Speed Run without load 60mm/s
work 6mm/s
Return 50mm/s
Axial Piston Pump   40MCY14-1B
Overall Dimension of the machine LxWxH 2x6100×2210×3000
Machine Weight t 48



Should Your Excellency need more information about us, please send us your inquiry.



We warmly welcome customers to visit our factory at any time. No wait, please order now!
