China CNC High Speed Drilling and Milling Machine in Heat Exchanger Manufacturing Industry (Model PHD2020-1)

China CNC High Speed Drilling and Milling Machine in Heat Exchanger Manufacturing Industry (Model PHD2020-1)

    • China CNC High Speed Drilling and Milling Machine in Heat Exchanger Manufacturing Industry (Model PHD2020-1)
    • China CNC High Speed Drilling and Milling Machine in Heat Exchanger Manufacturing Industry (Model PHD2020-1)
    • China CNC High Speed Drilling and Milling Machine in Heat Exchanger Manufacturing Industry (Model PHD2020-1)
  • China CNC High Speed Drilling and Milling Machine in Heat Exchanger Manufacturing Industry (Model PHD2020-1)

    Product Details:

    Place of Origin: China
    Brand Name: PERFECT
    Certification: ISO9001-2008
    Model Number: PHD2020-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD
    Packaging Details: STANDARD
    Delivery Time: 10
    Supply Ability: 1000
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Drilling Machine: Cnc Drilling Machine Tube Sheet Drilling Machine: Plate Drilling Machine
    Heat Exchanger: Boiler



    CNC High Speed Tube Sheet Drilling Machine



    (Model PHD2020-2)

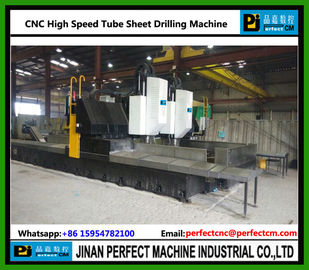

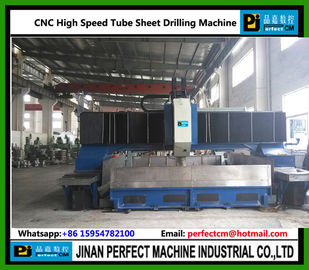

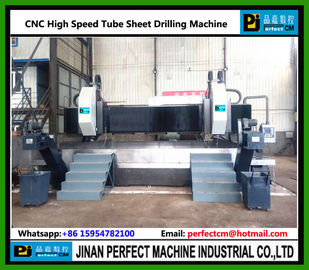

    China CNC High Speed Drilling and Milling Machine in Heat Exchanger Manufacturing Industry (Model PHD2020-1)



    Applicable Industry:



    Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. And large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.



    Machine Features & Advantages:



    1. The machine consists of left-and-right gantry base, middle worktable, Longitudinal movement gantry, slide carriage, power head, CNC system, recirculation cooling unit, automatic chip discharge system, hydraulic system, electrical system etc.



    2. Numerical control uses FAGOR8055 system, with USB connector and color LED panel, English interface. It can make spot / external PC workpiece input and be easily operated.



    3. The worktable is fixed, which is separate from the gantry, the gantry along the left-and-right base moving, this structure can guarantee the machine’s higher accuracy than other suppliers machine’s structure (worktable and the gantry fixed together).



    4. The machine has milling and tapping function, and can milling the seal groove and other grooves (user should supply special tools).



    5. The machine has 4 numeric control axes; a heavy linear guide is equipped on the lathe bed. The work table can make longitudinal movement along the guide(X axis), the gantry cross beam has a linear guide too; the slide carriage can make lateral movement along the guide (Y axis). Sliders are equipped on the slide carriage, a guide on power head which can make vertical movement on the slide carriage.



    6. The power head spindle is precision spindle of Taiwan KENTURN / Taiwan Xutai, which is driven by special frequency conversion motor and can make stepless speed regulation according to needs. The spindle is BT50 taper hole. The drilling head, reamer or milling cutter can be installed by splice bar. The spindle box has a loose cutter cylinder (air and hydraulic pressure) for easily changing cutters. It also can equip with cutter inter-cooled splice bar to realize high speed cutting.


    Technical Specifications:



    Name of parameter Item Value
    Max. distance between hole centers Length Width 2000X2000mm
    Max. thickness of workpiece   200mm
    Worktable Width of T-slot 28mm
    Vertical ram type drilling head Quantity 1
    Morse Taper BT50
    Max .drilling diameter. (Normal carbon steel) 40mm(Carbide drill head)
    50mm(High-speed steel twist drilling head

    Rotation speed of spindle(stepless frequency conversion) 30_3000r/min



    China CNC High Speed Drilling and Milling Machine in Heat Exchanger Manufacturing Industry (Model PHD2020-1)
