High Speed CNC Drilling Machine for Tube Sheet (Model PHD2020/PHD2525/PHD3030)

High Speed CNC Drilling Machine for Tube Sheet (Model PHD2020/PHD2525/PHD3030)

High Speed CNC Drilling Machine for Tube Sheet (Model PHD2020/PHD2525/PHD3030)

Product Details:

Place of Origin: China
Brand Name: PERFECT
Certification: ISO9001-2008
Model Number: PHD2020/PHD2525/PHD3030

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Packaging Details: STANDARD
Delivery Time: 10
Supply Ability: 1000
Detailed Product Description
Minimum Oeder Quantity: 1 Payment Terms: TT, L/C At Sight
Supply Aility: 100

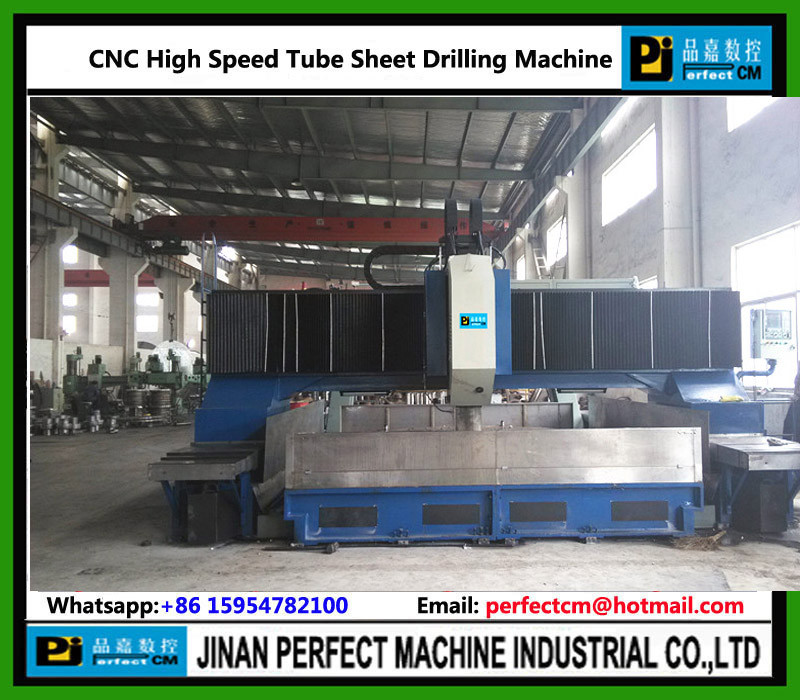

High Speed CNC Drilling Machine for Tube Sheet (Model PHD2020/PHD2525/PHD3030)


Applicable Industry:

Mainly used for drilling tube plate, clapboard, flange and large plate in petrochemical, boiler, wind power, flange industries and also for connection plates in building, bridge, heat exchange, iron tower industries.


Product Basic Parameter:

Model

Item

PHD2020-1

PHD2525-1

PHD3030-1

Maximum Size Of Workpiece

LXW (mm)

2000X2000

3000x2000

3000x3000

Max.Thickness Of Workpiece



250mm

NO.Of Champs

No.s

12

Worktable

T-Slot width/Space

22/500 mm

Vertical Sliding Drilling Head

Quantity

1 No.

Spindle Taper

BT50

Max.Drilling Diameter

(Plain Carbon Steel)

φ40mm(Carbide Drill)

φ50mm

(High-Speed Steeltwist Drill)

Main Spindle Rotation Speed

30-2800r/Min

Spindle Motor Power

22kw

The Distance From Bottom Spindle To Worktable

250-400mm

Longitudinal Movement Of Gantry(X Axis)

Max. Stroke

2000mm

3000mm

3000mm

X Axis Movement Speed

0-8m/Min

X Axis Servo Motor Power/Torque

2X3kw/28.4Nm

Lateral Movement Of Power Head(Y Axis)

Max. Stroke

2000mm

2000mm

3000mm

Y Axis Movement Speed

0-8m/Min

Y Axis Servo Motor Power/Torque

3kw/28.4Nm

Vertical Sliding Feeding Movement

(Z Axis)

Z Axis Stroke

500mm

Z Axis Feeding Speed

0-5m/Min

Z Axis Servo Motor Power/Torque

3kw/28.4Nm

Positioning Accuracy

X,Y Axis

≤0.1mm / Full length

Repeat Positioning Accuracy

X,Y Axis

≤0.05mm / Full length

Hydraulic System

Hydraulic Pump Pressure / Flow

6.5Mpa /25L/Min

Hydraulic Pump Motor Power

2.2kw

Pneumatic System

Compressed Air Supply Pressure

0.5Mpa

Chip Removal And Cooling

Chip Removal Type

Plate Chain Type

Quantity

1 No.

Chip Removal Speed

1m/min

Chip Removal Motor Power

0.75kw

Internal Cooling Water Pump Motor

3kw

External Cooling pump Motor power

0.75kw

Automatic Lubrication System

Lubrication Pressure

2Mpa

Lubrication Point Fuel Injection

0.1ml

Lubrication Cycle

6-10min

Electrical System

CNC System

FAGOR8055

CNC Axis

4

Overall Dimensions Of Machine

LXWXH

About 5200X5100X3600mm

About 6200X5100X3600mm

About 6200X6100X3600mm

Weight of Machine



About 30t

About 35t

About 40t
