Roller Type Angle Straightening Machine (Max. Angle Size: 200x200x20mm)

Roller Type Angle Straightening Machine (Max. Angle Size: 200x200x20mm)

Roller Type Angle Straightening Machine (Max. Angle Size: 200x200x20mm)

Product Details:

Place of Origin: China
Brand Name: PERFECT
Certification: ISO9001-2008
Model Number: JX200G

Payment & Shipping Terms:

Price: USD
Packaging Details: STANDARD
Delivery Time: 10
Supply Ability: 1000
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Minimum Oeder Quantity: 1 Payment Terms: TT
Supply Aility: 10000

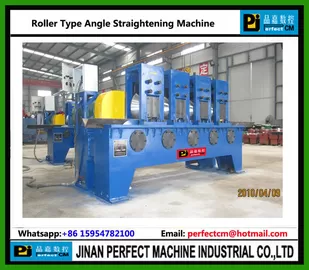

Roller Type Angle Straightening machine

Usage:


This machine is mainly used for strengthening angle with size below
200X200X20mm. Can also strengthening angle of bending, distorting
and folding.


Main Technical Specifications:


Model:JX70G/JX90G/JX100G/JX125G/JX130G


Function:Strengthening Angle, Have 9 Nos. Rollers

Straightening Angle Size (Mm):35x35x3-
70x70x7/35x35x3-90x90x8/35x35x3-100x100x10/
35x35x3-125x125x12/30x30x5-130x130x12mm
Angle Feeding Speed (M/Min):20-25/20-25/20-25/25-30 M/Min
Straightening Accuracy:1mm Per Meter
Driving Mode:Mechanical Driving, Adjustable, Easy Operation
Outline Dimension(Mm):1600x1000x1150/1680x1000x1170/
1940x1100x1250/2580x1360x1450/2600x1380x1470 Mm
Machine Weight (Kgs):1600/2000/2500/3800/4500 Kgs

For details, pls inquiry at mail: susancql at aliyun.com ;

We welcome any inquiry and questions to us at any time.

Any requirement, please please feel free to contact with our mail!

Skype: susancql

Mobile: 0086-15954782100 (What'sapp)

GTalk: jnfastcnc

E-mail: chengsusan2004 at hotmail.com


Thanks and Best Regards,


Ms. Susan
Marketing Director
