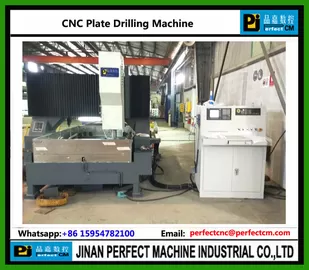

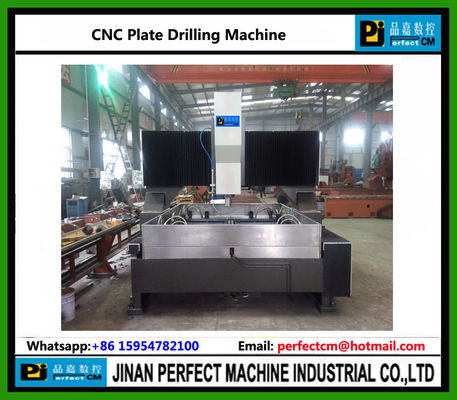

CNC Gantry Type Drilling Machine for Plates (PD Series)

CNC Gantry Type Drilling Machine for Plates (PD Series)

    • CNC Gantry Type Drilling Machine for Plates (PD Series)
    • CNC Gantry Type Drilling Machine for Plates (PD Series)
  • CNC Gantry Type Drilling Machine for Plates (PD Series)

    Product Details:

    Place of Origin: China
    Brand Name: PERFECT
    Certification: ISO9001-2008
    Model Number: PD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD
    Packaging Details: STANDARD
    Delivery Time: 30
    Payment Terms: TT, LC
    Supply Ability: 100
    Minimum Order Quantity: 1
    drill machine: cnc drilling machine
    Detailed Product Description

    CNC Gantry Type Drilling Machine for Plate (Model PD2010/PD2012/PD2016/PD3016)



    Applicable Industry:

    Special CNC machine for Drilling steel plates, flange and round plate in the field of steel structure industry. It is also used to drill steel plates of other industries.



    Specifications:

    Model PD2010 PD2012 PD2016 PD3016
    Max Size Of Work Piece L×W(Mm) 2000x1000 2000x1200 2000x1600 3000x1600
    Max. Drilling Diameter (Mm) Φ50 Φ50 Φ50 Φ50
    Max.Drilling thickness of plate (mm) 100 100 100 100
    Drill Head Quantity 1 1 1 1
    Power Of Main Motor (KW) 5.5 5.5 5.5 5.5
    Spindle Speed 120~560 (Frequency Control) 120~560 (Frequency Control) 120~560 (Frequency Control) 120~560 (Frequency Control)
    Drive Mode Of Gantry Longitudinal (X Axis) Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs.
    Positioning Speed (mm/Min) 8000 8000 8000 8000
    CNC Axis Quantity 3 3 3 3
    Electric Control Type MISTUBISHI PLC MISTUBISHI PLC MISTUBISHI PLC MISTUBISHI PLC
    Total Weight (kgs) 5200 6200 7200 8200
    Overall Dimensions (L×W×H ) mm 3000×1950×2790 33000×2150×2790 3000×2420×2790 5470x2610x2855
