|Place of Origin:||China|
|Model Number:||Model SWZ700|
|Minimum Order Quantity:||1|
|Payment Terms:||TT L/C|

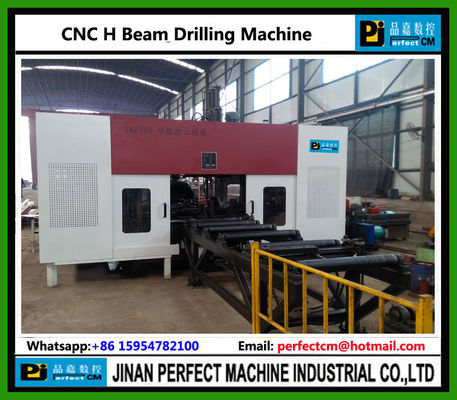

CNC H Beam Drilling Machine (Model SWZ700)
Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and output (tons-per-month) in today’s extremely competitive market. Model SWZ Series Machines eliminate time-consuming manual beam layout and hole drilling, formerly done by mag drills and/or hydraulic punches.
This machine is mainly composed of infeed conveyor, CNC infeed carriage, drilling unit, Out-feeding conveyor, as well as hydraulic, electrical and pneumatic systems etc.
|Max. H-Beams Size (Web Height×Flange Width) (mm)||1000x500||700x400|
|Min. H-Beams Size (Web Height×Flange Width) (mm)||150x75||150x75|
|H Beam Length (mm), Auto Feeding||≥3000||≥3000|
|H Beam Length (mm), Manual Feeding||≥690||≥690|
|Max. Workpiece Weight (Kg)||12000||5000|
|Vertical Drilling Diameter (mm)||Φ12~Φ33.5||Φ12~Φ30|
|Horizontal Drilling Diameter (mm)||Φ12~Φ26.5||Φ12~Φ30|
|No. Of Spindle||3||3|
|Rotation Speed (Stepless Speed Adjustment) (Rpm)||180~650||180~650|
|Spindle Motor Power (Kw)||3 x 4 kW||3 x 4 kW|
|Drilling Head Cooling Way||Compressed air + atomized drilling fluid||Compressed air + atomized drilling fluid|
|Total power (KW)||34||27|
Gross Weight Of Main Machine(Kg)
