Home ProductsCNC Drilling Machine

Radial Drilling Machine

Radial Drilling Machine

Radial Drilling Machine

Product Details:

Place of Origin: China
Brand Name: PERFECT
Certification: ISO9001-2008
Model Number: Z3032x10/Z3040x13/Z3050x16/Z3063x20

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Packaging Details: STANDARD
Delivery Time: 10
Supply Ability: 1000
Contact Now
Detailed Product Description
Minimum Oeder Quantity: 1 Payment Terms: TT
Supply Aility: 10000

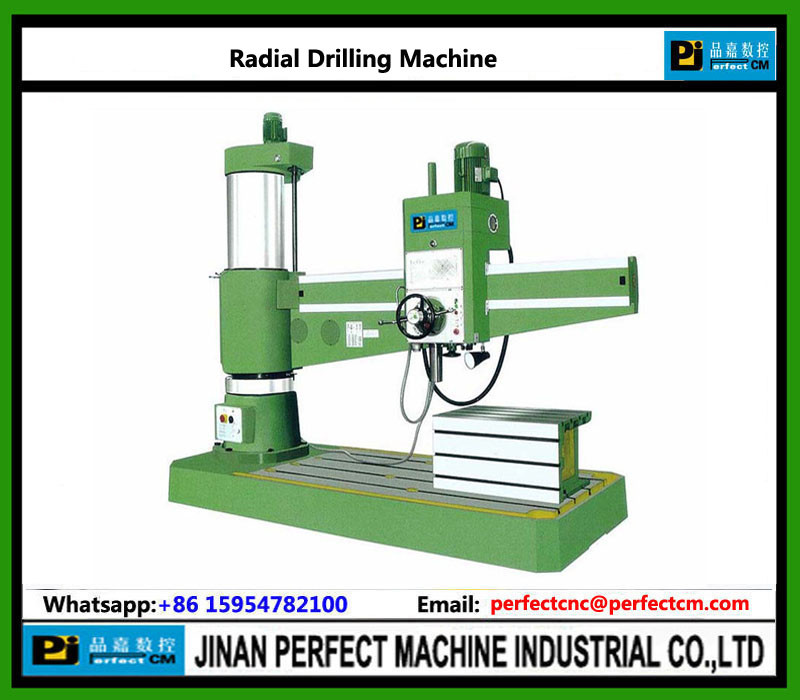

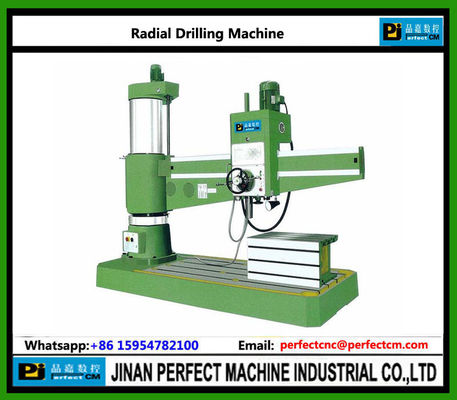

Radial Drilling Machine

Specifications:

Model

Z3032x10

Z3040x13

Z3050x16

Z3063x20

Max. Drilling Diameter

Ø32

Ø40

Ø50

Ø63

The Distance between spindle axis center line to column bus

260-800mm

360-1300mm

360-1600mm

400-2000mm

The Distance between spindle axis end  to base surface

220-980mm

260-1000mm

320-1220mm

500-1600mm

Morse taper for spindle bore

4

4

5

5

Main Spindle Stroke

120mm

200mm

300mm

400mm

Main Spindle Rotation Speed Grade

6

12

16

16

Main Spindle Rotation Range

108-1000r/min

32-1220r/min

25-2000r/min

20-1600r/min

Main motor Power

2.2KW

2.2KW

4KW

5.5KW

Machine Weight

750KGS

1400KGS

3500KGS

7000KGS

Overal Dimension

1250x705x2020mm

1800x810x2300mm

2500x1060x2800mm

3000x1250x3300mm

Features

Hydraulic transmission, Hydraulic clamps,Hydraulic speed changing, auto lifting


Should Your Excellency need more information about us, please send us your inquiry.

We warmly welcome customers to visit our factory at any time. No wait, please order now!
