CNC H Beam Drilling Machine Supplier in Steel Structure Industry (Model SWZ1000)

Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number Model SWZ1000
Minimum Order Quantity 1
Price USD
Packaging Details STANDARD
Delivery Time 10
Payment Terms TT, L/C
Supply Ability 1000
Product Details
H Beam Drilling Machine Beam Drilling Machine Beam Drill Machine Band Saw
Band Sawing Machine Cnc Drilling Machine
Leave a Message
Product Description

CNC H Beam Drilling Machine (Model SWZ700)

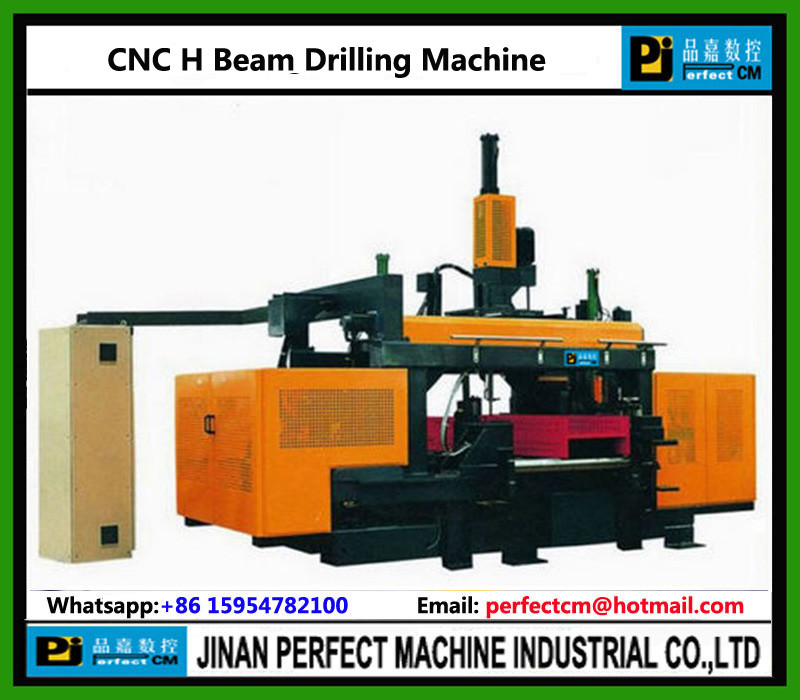

CNC H Beam Drilling Machine Supplier in Steel Structure Industry (Model SWZ1000) 0



1. Applicable Industry:



Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and output (tons-per-month) in today’s extremely competitive market. Model SWZ Series Machines eliminate time-consuming manual beam layout and hole drilling, formerly done by mag drills and/or hydraulic punches.



CNC H Beam Drilling Machine Supplier in Steel Structure Industry (Model SWZ1000) 1



2. PRODUCT COMPOSITION:



This machine is mainly composed of infeed conveyor, CNC infeed carriage, drilling unit, Out-feeding conveyor, as well as hydraulic, electrical and pneumatic systems etc.





3. Product Feature:

  • 1.Equipped with three drilling head, the drilling procedure finished after the work piece going through the equipment.
  • 2. Three drilling head can drill holes simultaneously, and adopt self-controlled stroke drilling head.
  • 3. No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid feeding and work feeding, and with high efficiency.
  • 4. CNC & PLC systems, LCD display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
  • 5. Programming Microsoft is not depend on CPU equipment, can be installed in any computer to carry out programming off-site, direct copy or network transmission to the equipment to realize.
  • 6. Each drilling head, equipped with professional main shaft speed-reducing-motor from famous products abroad.
  • 7. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.



4. Specifications:



Model SWZ1000 SWZ700
Max. H-Beams Size (Web Height×Flange Width) (mm) 1000x500 700x400
Min. H-Beams Size (Web Height×Flange Width) (mm) 150x75 150x75
H Beam Length (mm), Auto Feeding ≥3000 ≥3000
 H Beam Length (mm), Manual Feeding ≥690 ≥690
Max. Workpiece Weight (Kg) 12000 5000
Vertical Drilling Diameter (mm) Φ12~Φ33.5 Φ12~Φ30
Horizontal Drilling Diameter (mm) Φ12~Φ26.5 Φ12~Φ30
No. Of Spindle 3 3
Rotation Speed (Stepless Speed Adjustment) (Rpm) 180~650 180~650
Spindle Motor Power (Kw) 3 x 4 kW 3 x 4 kW
Drilling Head Cooling Way Compressed air + atomized drilling fluid Compressed air + atomized drilling fluid
Total power (KW) 34 27

Gross Weight Of Main Machine(Kg)

7000 4500



















































CNC H Beam Drilling Machine Supplier in Steel Structure Industry (Model SWZ1000) 2



Should Your Excellency need more information about us, please send us your inquiry.



We warmly welcome customers to visit our factory at any time. No wait, please order now!



Skype: susancql

Mobile: 0086-15954782100 (What'sapp)

GTalk: jnfastcnc@gmail.com

E-mail: perfectcnc@perfectcm.com

Website: www.perfectcm.com



Thanks and Best Regards,



JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
