Single Blade CNC Angle Punching, Shearing & Marking Line (Model BL1412A)

  • Single Blade CNC Angle Punching, Shearing & Marking Line (Model BL1412A)
Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number BL1412A
Minimum Order Quantity 1
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 100
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
High Light

cnc angle line power transmission tower line

,

cnc punching machine cutting machine marking machine

,

cnc drilling machine shearing machine notching machine straightening machine
Leave a Message
Product Description

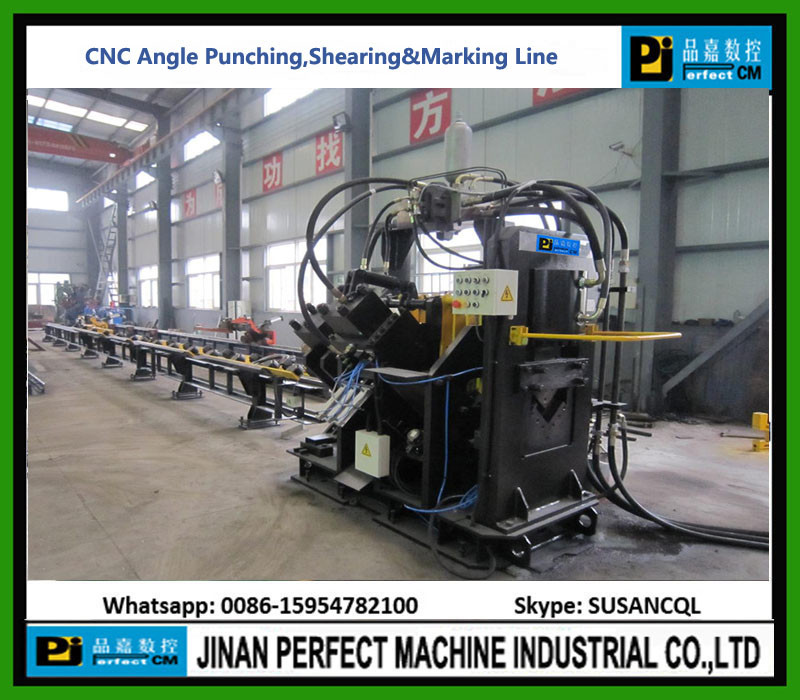

CNC Punching, Marking & Shearing Line for Angles


APPLICABLE INDUSTRY:
The machine is the automatic special equipment used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry.



PRODUCT COMPOSITION:

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.



SPECIFICATIONS:

Model

BL2020

BL1412

BL1412A

Angle Size (mm)

50х50x3～ 200х200х20

40x40x3～  140x140x 12

40x40x3～  140x140x 12

Max. Punching (Dia. х Thi.) (mm)

Φ26х20

Φ26х12

Φ26х12

Punching Force (Kn)

1000

600

600

Marking Force (KN)

800

800

800

Shearing Force (KN)

1400

900

1800

Max. Length Of Blank (m)

14

12

12

Max. Length Of Finished (m)

14

12

12

Punches Per Side

3

2

2

Group Of Marking Letters

4

4

4

Stadia Range (Back Mark)(mm)

20-170

18-110

18-110

Stadia Servo Motor Power (KW)

1.3 × 2 YASKAWA

1.3 × 2 YASKAWA

1.3 × 2 YASKAWA

NC Carriage Motor Power (KW)

4.4 YASKAWA

4.4 YASKAWA

4.4 YASKAWA

Motor Power Of Infeed Conveyor(Kw)

2.2

2.2

2.2

Motor Power Of Overturn Rack (KW)

2.2

2.2

2.2

Motor Power Of Hydraulic Station (Kw)

22

22

22

Dimension Of Letter (mm)

14×10×19

14×10×19

14×10×19

CNC Axes

3

3

3

Shearing Mode

Double Blade cutting

Double blade cutting

Single Blade Cutting

Feeding Speed Of Angle (m/min)

50

70

70

Processing Precision

Accordance with GB2694-2010

Programming Mode

Input by keyboard, RS232 interface,

floppy disk and USB interface

Overall Dimensions (mm)

≈32000×7500×2600

≈25400×7000×2200

≈25400×7000×2200

We welcome customers inquiry at any time. No wait, please order now!

Should Your Excellency need more information about us, please send us your inquiry.

Skype: susancql

Mobile: 0086-15954782100 (What'sapp)

GTalk: jnfastcnc

E-mail: chengsusan2004 at hotmail.com
