CNC Drilling Machines for Big Beams

  • CNC Drilling Machines for Big Beams
Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number BD200/3
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
High Light

h beam line

,

cnc drilling machine

,

h beam drill line
Leave a Message
Product Description

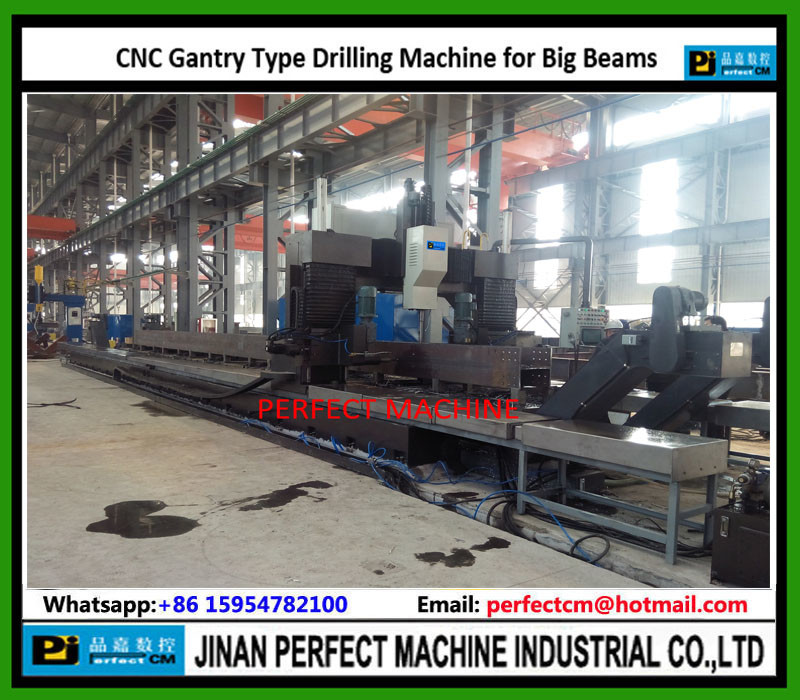

CNC Gantry Type H Beams Drilling Machine



Applicable Industry:


Used for the drilling processing of H-shape steel, box beam, channel steel, big angle and steel plate of steel structure, bridge, three dimensional garage and petrol platform.

Product Feature:



This machine is mainly made up of bed table, movable gantry, longitudinal slide board, three directions CNC sliding drilling spindle, automatic chip removal and the cooling system, electrical system and other components.


Product Basic Parameter:

Model

BD200/3

Movable Gantry Type Drilling

Workpiece Size

Max. Section Size (W×H) (Mm)

2000×1000

Min. Section Size (W×H) (Mm)

1000x400

Max. Length (m)

16

Work Table

The Height To The Ground

800mm



Drilling Unit

Type

CNC Slipway Servo Control Type

Quantity

3

Max. Drilling Dia. (Mm)

Φ50

Rotation Speed (r/Min)

120~560 (Frequency Conversion)

Feeding Speed (Mm/Min)

0~4000
