Beam Flipper Machine
|Minimum Oeder Quantity||1||Payment Terms||TT Lc|

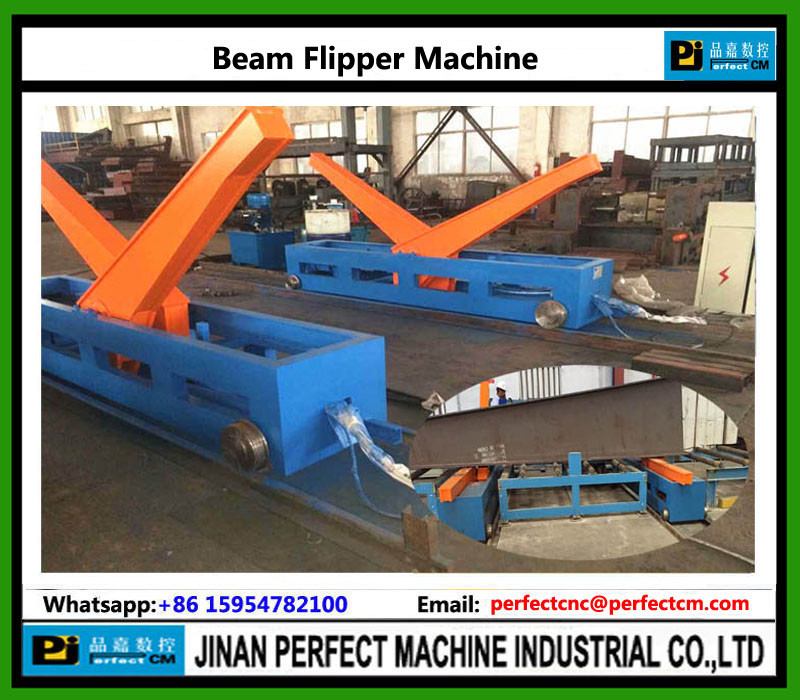

180° Beam Flipper Machine (Movable Hydraulic Tilting Bracket )
Model YF Series
Walking type 180 °tilting bracket is consist of main body, hydraulic system and electirc control system. Main body is consist of 90°tilting arm ,pedestal,walking roller ,walking motor & reducer and railway .
When it is working ,it carries beam ,motor drives two units tilting brackets moves at the same time, then make h beam move to side of middle of roll,at last ,it tilts h beam with 180°,then it moves to middle position of roll for next transmitting.. Cable distribution adopts chain transmitting,its safe beautiful,reliable and compact,very convenient to operate.
2. Technical parameters:
l Max weight : 4 ton-20Tons
l Tilting max section size : 800*800mm or Bigger Sizer
l Length of H beam: 6-12 m
l Walking motor power : 0.75KW
l Walking speed : 6m/min
l Tilting oil cylinder diameter : 80mm
l Max Hydraulic pressure : 16Mpa
l Hydraulic pump power : 5.5 KW
