Best Price CNC Angle Punching Shearing and Marking Line Used in Iron Tower Industry (BL1412)

Place of Origin CHINA
Brand Name PERFECT
Certification ISO9001
Model Number BL1412
Minimum Order Quantity 1 unit
Price $
Packaging Details International Standard
Delivery Time 20-40 days
Payment Terms L/C, T/T
Supply Ability 500/unit/per year
Product Details
CNC Machine Punching Machine Shearing Machine Cnc Angle Line
Angle Punching Machine Iron Angle Production Line
Leave a Message
Product Description

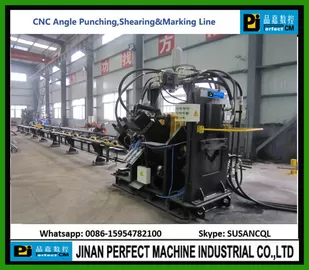

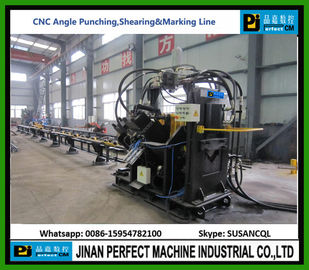

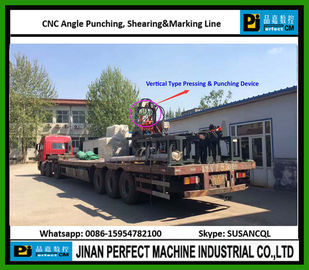

CNC Angle Punching Shearing and Marking Line (Single Blade Shearing)



Model BL2020 / BL1412 / BL1412A



(Angle Size: 50х50x4~200х200х20mm)

(Angle Size: 40x40x3~140x140x12mm)





1. APPLICABLE INDUSTRY:


The machine is the automatic special equipment used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry.



2. PRODUCT COMPOSITION:

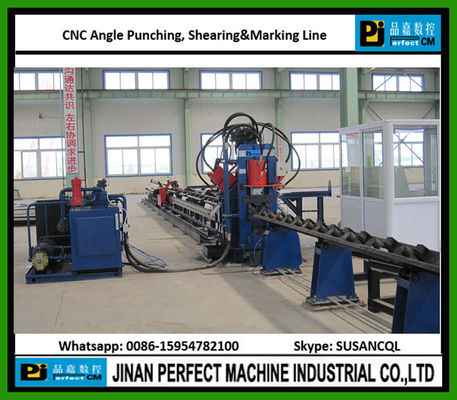

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.



Best Price CNC Angle Punching Shearing and Marking Line Used in Iron Tower Industry (BL1412) 0



3. Specifications:



Model

BL2020

BL1412

BL1412A

Angle Size (mm)

50х50x4~ 200х200х20

40x40x3~ 140x140x 12

40x40x3~ 140x140x 12

Max. Punching (Dia. х Thi.) (mm)

Φ26х20

Φ26х12

Φ26х12

Punching Force (Kn)

1200

600

600

Marking Force (KN)

700

700

700

Shearing Force (KN)

1800

900

1600

Max. Length Of Blank (m)

14

12

12

Max. Length Of Finished (m)

12

10

10

Punches Per Side

3

2

3

Group Of Marking Letters

4

4

4

Stadia Range (Back Mark)(mm)

20-170

18-110

18-110

Stadia Servo Motor Power (KW)

1.3 × 2 YASKAWA

1.3 × 2 YASKAWA

1.3 × 2 YASKAWA

NC Carriage Motor Power (KW)

4.4 YASKAWA

4.4 YASKAWA

4.4 YASKAWA

Motor Power Of Infeed Conveyor(Kw)

2.2

2.2

2.2

Motor Power Of Overturn Rack (KW)

2.2

2.2

2.2

Motor Power Of Hydraulic Station (KW)

22

22

22

Dimension Of Letter (mm)

14×10×20

14×10×20

14×10×20

CNC Axes

3

3

3

Shearing Mode

Double Blade cutting

Double blade cutting

Single Blade Cutting

Feeding Speed Of Angle (m/min)

60

70

70

Processing Precision

Accordance with GB2694-2010

Programming Mode

Input by keyboard, RS232 interface,

floppy disk and USB interface

Overall Dimensions (mm)

≈32000×7500×2600

≈25400×7000×2200

≈25400×7000×2200

Gross Weight Of Machine (Kg)

≈16500

≈14500

≈14500



Best Price CNC Angle Punching Shearing and Marking Line Used in Iron Tower Industry (BL1412) 1



4. Technical Charecteristics:


1.) Integrateded machine with mechanical, electrical and hydraulic elements;
2.) Numerical controlling, three axes servo motor feeding;
3.) Infinite gaugelines and no limits of the hole rows;
4.) Imported electronic, hydraulic and pneumatic elements;
5.) Easy programming, connectable with data files generated directly by copying the specimen;
6.) Diagrammatic display of workpiece;
7.) Adapted to angles with great bending deflection;


5. Advantages:


1.) Rigid and compact structure
2.) High productivity with automatic marking, punching, cutting off and stacking operations;
3.) High meterial utilization with optimum pattering;
4.) Low labour working strength and high precision of workpieces.
