CNC High Speed Angle Punching Shearing and Marking Line-Single Blade Shearing (BL1010)

  • CNC High Speed Angle Punching Shearing and Marking Line-Single Blade Shearing (BL1010)
  • CNC High Speed Angle Punching Shearing and Marking Line-Single Blade Shearing (BL1010)
  • CNC High Speed Angle Punching Shearing and Marking Line-Single Blade Shearing (BL1010)
Place of Origin CHINA
Brand Name PERFECT
Certification ISO9001
Model Number BL1010
Minimum Order Quantity 1 unit
Price $
Packaging Details International Standard
Delivery Time 20-40 days
Payment Terms L/C, T/T
Supply Ability 500/unit/per year
Product Details
CNC Machine Punching Machine Shearing Machine Cnc Angle Line
Angle Punching Machine Iron Angle Production Line
Leave a Message
Product Description



CNC High Speed Angle Punching Shearing and Marking Line - Single Blade Shearing  (BL1010)



Model BL1010



(Angle Size: 40х40х3～100х100х10mm)







1. APPLICABLE INDUSTRY:


The machine is the automatic special equipment used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry.



2. PRODUCT COMPOSITION:



This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.

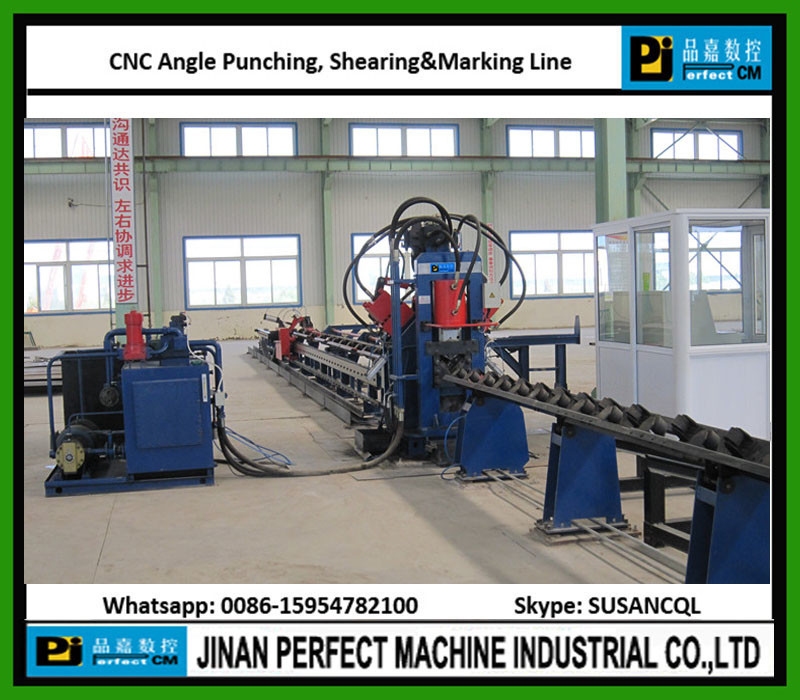

CNC High Speed Angle Punching Shearing and Marking Line-Single Blade Shearing (BL1010) 0



3. Specifications:



Model BL1010
Functions Punching, marking, shearing
Angle Size (Mm) 40х40х3～100х100х10
Max. Punching (Dia. х Thick.) (mm) Φ26х10 (10mm, Q345)
Punching Force (KN) 400
Marking Force (KN) 800
Cutting Force (KN) 1000
Max. Length Of Blank (m) 9
Max. Length Of Finished (m) 9
Punches Per Side 2
Group Of Marking Letters 4
Dimension Of Letter (mm) 14×10×20
CNC Axes 3
Cutting Mode Single Blade Cutting
Feeding Speed Of Angle (m/min) 80
Processing Precision Accordance with GB2694
Program Function Real time fault display
Programming Mode

Input by keyboard, RS232 interface,

floppy disk and USB interface
Program Function Error display
Overall Dimension (mm)

19500X5500X2200

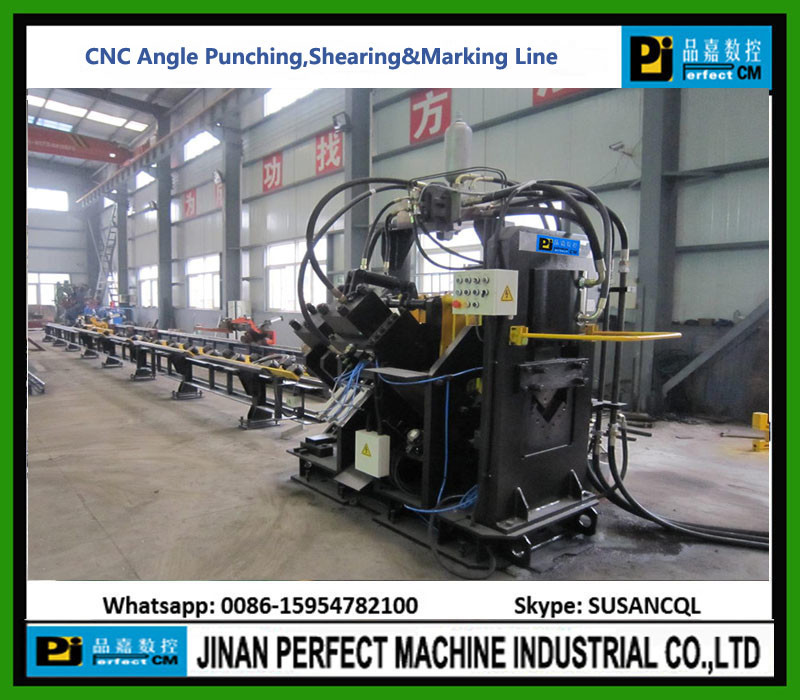

                      CNC High Speed Angle Punching Shearing and Marking Line-Single Blade Shearing (BL1010) 1



4. Technical Charecteristics:


1.) Integrateded machine with mechanical, electrical and hydraulic elements;
2.) Numerical controlling, three axes servo motor feeding;
3.) Infinite gaugelines and no limits of the hole rows;
4.) Imported electronic, hydraulic and pneumatic elements;
5.) Easy programming, connectable with data files generated directly by copying the specimen;
6.) Diagrammatic display of workpiece;
7.) Adapted to angles with great bending deflection;


5. Advantages:


1.) Rigid and compact structure
2.) High productivity with automatic marking, punching, cutting off and stacking operations;
3.) High meterial utilization with optimum pattering;
4.) Low labour working strength and high precision of workpieces.
