China CNC Angle Punching Production Line Supplier Used in Iron Tower Industry - Single Blade Shearing (BL1412A)
CNC Machine | Punching Machine | Shearing Machine | Cnc Angle Line |
---|---|---|---|
Angle Punching Machine | Iron Angle Production Line |

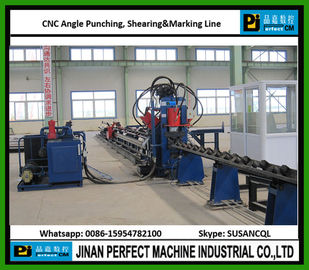

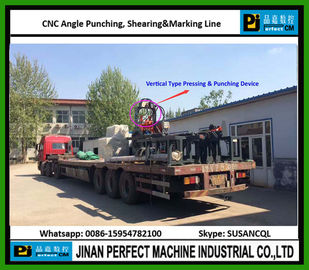

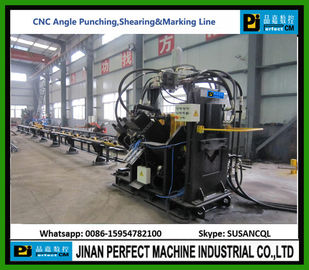

CNC Angle Punching Shearing and Marking Line (Single Blade Shearing)
Model BL2020 / BL1412 / BL1412A
(Angle Size: 50х50x4~200х200х20mm)
(Angle Size: 40x40x3~140x140x12mm)
1. APPLICABLE INDUSTRY:
The machine is the automatic special equipment used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry.
2. PRODUCT COMPOSITION:
This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
3. Specifications:
Model |
BL2020 |
BL1412 |
BL1412A |
Angle Size (mm) |
50х50x4~ 200х200х20 |
40x40x3~ 140x140x 12 |
40x40x3~ 140x140x 12 |
Max. Punching (Dia. х Thi.) (mm) |
Φ26х20 |
Φ26х12 |
Φ26х12 |
Punching Force (Kn) |
1200 |
600 |
600 |
Marking Force (KN) |
700 |
700 |
700 |
Shearing Force (KN) |
1800 |
900 |
1600 |
Max. Length Of Blank (m) |
14 |
12 |
12 |
Max. Length Of Finished (m) |
12 |
10 |
10 |
Punches Per Side |
3 |
2 |
3 |
Group Of Marking Letters |
4 |
4 |
4 |
Stadia Range (Back Mark)(mm) |
20-170 |
18-110 |
18-110 |
Stadia Servo Motor Power (KW) |
1.3 × 2 YASKAWA |
1.3 × 2 YASKAWA |
1.3 × 2 YASKAWA |
NC Carriage Motor Power (KW) |
4.4 YASKAWA |
4.4 YASKAWA |
4.4 YASKAWA |
Motor Power Of Infeed Conveyor(Kw) |
2.2 |
2.2 |
2.2 |
Motor Power Of Overturn Rack (KW) |
2.2 |
2.2 |
2.2 |
Motor Power Of Hydraulic Station (KW) |
22 |
22 |
22 |
Dimension Of Letter (mm) |
14×10×20 |
14×10×20 |
14×10×20 |
CNC Axes |
3 |
3 |
3 |
Shearing Mode |
Double Blade cutting |
Double blade cutting |
Single Blade Cutting |
Feeding Speed Of Angle (m/min) |
60 |
70 |
70 |
Processing Precision |
Accordance with GB2694-2010 |
||
Programming Mode |
Input by keyboard, RS232 interface, floppy disk and USB interface |
||
Overall Dimensions (mm) |
≈32000×7500×2600 |
≈25400×7000×2200 |
≈25400×7000×2200 |
Gross Weight Of Machine (Kg) |
≈16500 |
≈14500 |
≈14500 |
4. Technical Charecteristics:
1.) Integrateded machine with mechanical, electrical and hydraulic elements;
2.) Numerical controlling, three axes servo motor feeding;
3.) Infinite gaugelines and no limits of the hole rows;
4.) Imported electronic, hydraulic and pneumatic elements;
5.) Easy programming, connectable with data files generated directly by copying the specimen;
6.) Diagrammatic display of workpiece;
7.) Adapted to angles with great bending deflection;
5. Advantages:
1.) Rigid and compact structure
2.) High productivity with automatic marking, punching, cutting off and stacking operations;
3.) High meterial utilization with optimum pattering;
4.) Low labour working strength and high precision of workpieces.
