China CNC High Speed Angle Drilling and Marking Line for sale Used in Transmission Tower Industry (AHD2532)

Place of Origin CHINA
Brand Name PERFECT
Certification ISO9001
Model Number AHD2532
Minimum Order Quantity 1 unit
Price $
Packaging Details International Standard
Delivery Time 20-40 days
Payment Terms L/C, T/T
Supply Ability 500/unit/per year
Product Details
CNC Machine Punching Machine Shearing Machine Cnc Angle Line
Angle Punching Machine Iron Angle Production Line
Leave a Message
Product Description

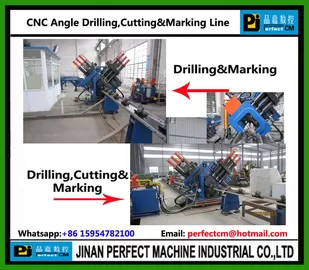

CNC High Speed Angle Drilling, Shearing and Marking Line Used in Iron Tower Industry  --- Our National Patent Machine



Model AHD2532



(Max. Angle size: 250x250x32mm)







1. APPLICABLE INDUSTRY:



The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.



2. PRODUCT COMPOSITION:

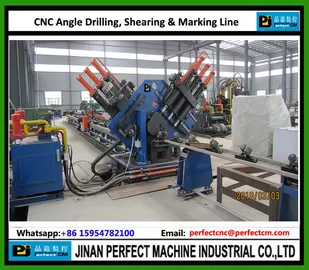

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, drilling unit, marking unit, shearing unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.



China CNC High Speed Angle Drilling and Marking Line for sale Used in Transmission Tower Industry (AHD2532) 0



3. SPECIFICATIONS:



Model AHD2532
Angle Size(mm) 100x100x12~250x250x32
Marking Force(KN) 1500
Max. Length Of Blank(m) 14
Single Blade Cutting Force (KN)

4300KN, up to 200x200x20mm

(thickness:20mm; YS≤350N/mm²)

No. Of Drills At Each Side(Piece) 3
No. Of Marking Character Group 1
No. Of Characters 18
Character Side(mm) 18x12x19
CNC Axes 9
Drilling Spindle Taper BT40
Spindle Rotation Speed(r/min) 30-6000
Max. Diameter Of Drilling(mm) Ф40
Motor Power of Main Drilling Spindle (KW) 11





                        China CNC High Speed Angle Drilling and Marking Line for sale Used in Transmission Tower Industry (AHD2532) 1



4. Technical Characteristics:

  • l. Integrated machine with mechanical, electrical and hydraulic elements;
  • l. Numerical controlled, three axes servo motor driven;
  • l. Drilling power head upside;
  • l. Criterion can be set arbitrarily, no limits of number of drilling rows;
  • l. Electric, hydraulic pneumatic parts are all imported famous brand;
  • l. Programming method: keyboard and mouse input, USB interface input, net interface input, remote network monitoring;
  • l. Easy programming, can use procedure data generated directly by copying the specimen;
  • l. Graphic display of workpiece;
  • l. Self-diagnostic function.



5. Advantages:

  • u. Rigid and compact structure;
  • u. Double side angle drilling, high working efficiency;
  • u. With power head upside, cooling water won’t enter drilling pole and transmission box;
  • u. All equipment installed above the ground easy to repair and maintenance;
  • u. No need to dig pit, save cost;
  • u. No chip enter the pit, easy to remove the chip;
  • u. Remote network monitoring;
  • u. Decrease labor intensity, ensure working accuracy and stability.
  • u. Machine can suitable to Different countries’ condition like motor of 415 volts, 50 Hz.
  • u. We can provide chiller for hydraulic tank oil cooling to prevent damage of cylinder part due to oil temperature (optional but can be done on client request).
