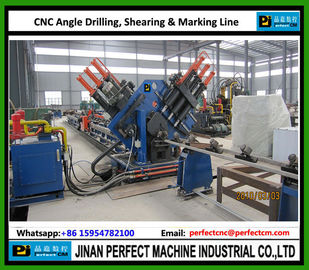

CNC Angle Drilling, Shearing and Marking Line Used in Iron Tower Industry (BL2532) --- Our National Patent Machine
(Max. Angle size: 250x250x32mm)
1. APPLICABLE INDUSTRY:
The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.
2. PRODUCT COMPOSITION:

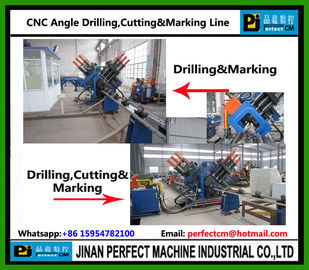

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, drilling unit, marking unit, shearing unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
|Max. Length Of Blank(m)||12|
|Double Blade Cutting Force(KN)||1400, up to 200x200x20mm (optional)|
|Single Blade Cutting Force (KN)||4500, up to 200x200x20mm (optional)|
|Circular Saw Cutting Speed(Mt/Min)||80-180, up to 250x250x32mm (optional)|
|No. Of Drills At Each Side(Piece)||3|
|No. Of Character Group(Piece)||1|
|No. Of Character In Each Character Size(Piece)||18|
|Range Of Back Mark (mm)||48-220 (Stepless)|
|Spindle Rotation Speed(r/Min)||180-760,Transducer Stepless Adjustment|
|Feeding Speed Of Angle(m/Min)||40|
|Max. Diameter Of Drilling(mm)||Ф40|
|Stroke Of Spindle(mm)||240|
|Processing Precision||Accordance With GB2694-2003|
|Programming Mode||Keyboard And Mouse Input, USB Input Interface, Network Interface Input, Remote Network Monitoring.|
|Overall Dimensions (m)||30×7×2.6|
|Gross Weight Of Machine(Kg)||Approx.17000|
4. Technical Characteristics:
- l. Integrated machine with mechanical, electrical and hydraulic elements;
- l. Numerical controlled, three axes servo motor driven;
- l. Drilling power head upside;
- l. Criterion can be set arbitrarily, no limits of number of drilling rows;
- l. Electric, hydraulic pneumatic parts are all imported famous brand;
- l. Programming method: keyboard and mouse input, USB interface input, net interface input, remote network monitoring;
- l. Easy programming, can use procedure data generated directly by copying the specimen;
- l. Graphic display of workpiece;
- l. Self-diagnostic function.
- u. Rigid and compact structure;
- u. Double side angle drilling, high working efficiency;
- u. With power head upside, cooling water won’t enter drilling pole and transmission box;
- u. All equipment installed above the ground easy to repair and maintenance;
- u. No need to dig pit, save cost;
- u. No chip enter the pit, easy to remove the chip;
- u. Remote network monitoring;
- u. Decrease labor intensity, ensure working accuracy and stability.
- u. Machine can suitable to Different countries’ condition like motor of 415 volts, 50 Hz.
- u. We can provide chiller for hydraulic tank oil cooling to prevent damage of cylinder part due to oil temperature (optional but can be done on client request).
