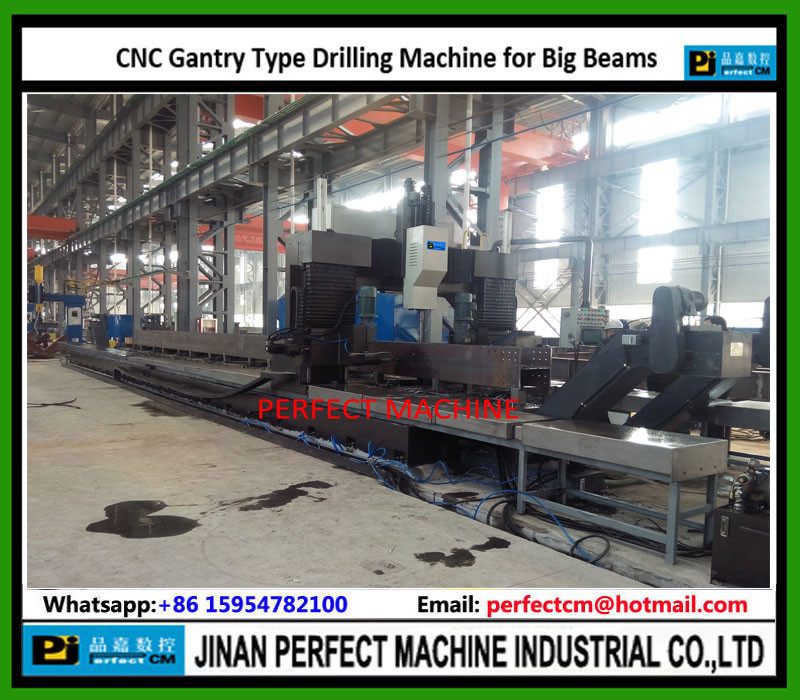

CNC H Beam Drilling Machine (Model SWZ700)
1. Applicable Industry:
Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and output (tons-per-month) in today’s extremely competitive market. Model SWZ Series Machines eliminate time-consuming manual beam layout and hole drilling, formerly done by mag drills and/or hydraulic punches.
2. PRODUCT COMPOSITION:
This machine is mainly composed of infeed conveyor, CNC infeed carriage, drilling unit, Out-feeding conveyor, as well as hydraulic, electrical and pneumatic systems etc.
3. Product Feature:
- 1.Equipped with three drilling head, the drilling procedure finished after the work piece going through the equipment.
- 2. Three drilling head can drill holes simultaneously, and adopt self-controlled stroke drilling head.
- 3. No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid feeding and work feeding, and with high efficiency.
- 4. CNC & PLC systems, LCD display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
- 5. Programming Microsoft is not depend on CPU equipment, can be installed in any computer to carry out programming off-site, direct copy or network transmission to the equipment to realize.
- 6. Each drilling head, equipped with professional main shaft speed-reducing-motor from famous products abroad.
- 7. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.
|Max. H-Beams Size (Web Height×Flange Width) (mm)||1000x500||700x400|
|Min. H-Beams Size (Web Height×Flange Width) (mm)||150x75||150x75|
|H Beam Length (mm), Auto Feeding||≥3000||≥3000|
|H Beam Length (mm), Manual Feeding||≥690||≥690|
|Max. Workpiece Weight (Kg)||12000||5000|
|Vertical Drilling Diameter (mm)||Φ12~Φ33.5||Φ12~Φ30|
|Horizontal Drilling Diameter (mm)||Φ12~Φ26.5||Φ12~Φ30|
|No. Of Spindle||3||3|
|Rotation Speed (Stepless Speed Adjustment) (Rpm)||180~650||180~650|
|Spindle Motor Power (Kw)||3 x 4 kW||3 x 4 kW|
|Drilling Head Cooling Way||Compressed air + atomized drilling fluid||Compressed air + atomized drilling fluid|
|Total power (KW)||34||27|
Gross Weight Of Main Machine(Kg)
