Enhanced Type CNC Angle Punching Shearing and Marking Line Single Blade Shearing (APM2020)

Place of Origin CHINA
Brand Name PERFECT
Certification ISO9001
Model Number APM2020
Minimum Order Quantity 1 unit
Price $
Packaging Details International Standard
Delivery Time 20-40 days
Payment Terms L/C, T/T
Supply Ability 500/unit/per year
Product Details
CNC Machine Punching Machine Shearing Machine Cnc Angle Line
Angle Punching Machine Iron Angle Production Line
Leave a Message
Product Description

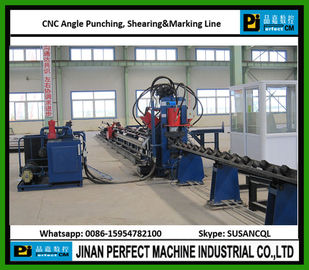

Enhanced Type CNC Angle Punching Shearing and Marking Line (Single Blade Shearing)



Model APM2020



(Angle Size: 50х50x4~200х200х20mm)









1. APPLICABLE INDUSTRY:


The machine is the automatic special equipment used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry.



2. PRODUCT COMPOSITION:



This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.

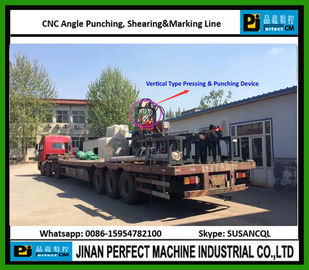

Enhanced Type CNC Angle Punching Shearing and Marking Line Single Blade Shearing (APM2020) 0



3. Specifications:



Model APM2020
Angle Size (mm) 50х50x4~200х200х20
Max. Punching (Dia. х Thi.) (mm) Φ26х20 (Q345)
Punching Force (Kn) 1200
Marking Force (KN) 700
Shearing Force (KN) 4300
Max. Length Of Blank (m) 14
Max. Length Of Finished (m) 12
Punches Per Side 3
Group Of Marking Letters 4
Stadia Range (Back Mark)(mm) 20-170
Stadia Servo Motor Power (KW) 1.3 × 2 YASKAWA
NC Carriage Motor Power (KW) 4.4 YASKAWA
Motor Power Of Infeed Conveyor(Kw) 2.2
Motor Power Of Overturn Rack (KW) 2.2
Motor Power Of Hydraulic Station (KW) 22
Dimension Of Letter (mm) 14×10×20
CNC Axes 3
Shearing Mode Single Blade Cutting
Feeding Speed Of Angle (m/min) 60
Processing Precision Accordance with GB2694-2010
Programming Mode Input by keyboard, RS232 interface, floppy disk and USB interface
Overall Dimensions (mm) ≈32000×7500×2600

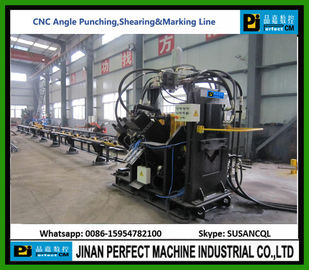

Enhanced Type CNC Angle Punching Shearing and Marking Line Single Blade Shearing (APM2020) 1



4. Technical Charecteristics:


1.) Integrateded machine with mechanical, electrical and hydraulic elements;
2.) Numerical controlling, three axes servo motor feeding;
3.) Infinite gaugelines and no limits of the hole rows;
4.) Imported electronic, hydraulic and pneumatic elements;
5.) Easy programming, connectable with data files generated directly by copying the specimen;
6.) Diagrammatic display of workpiece;
7.) Adapted to angles with great bending deflection;


5. Advantages:


1.) Rigid and compact structure
2.) High productivity with automatic marking, punching, cutting off and stacking operations;
3.) High meterial utilization with optimum pattering;
4.) Low labour working strength and high precision of workpieces.
