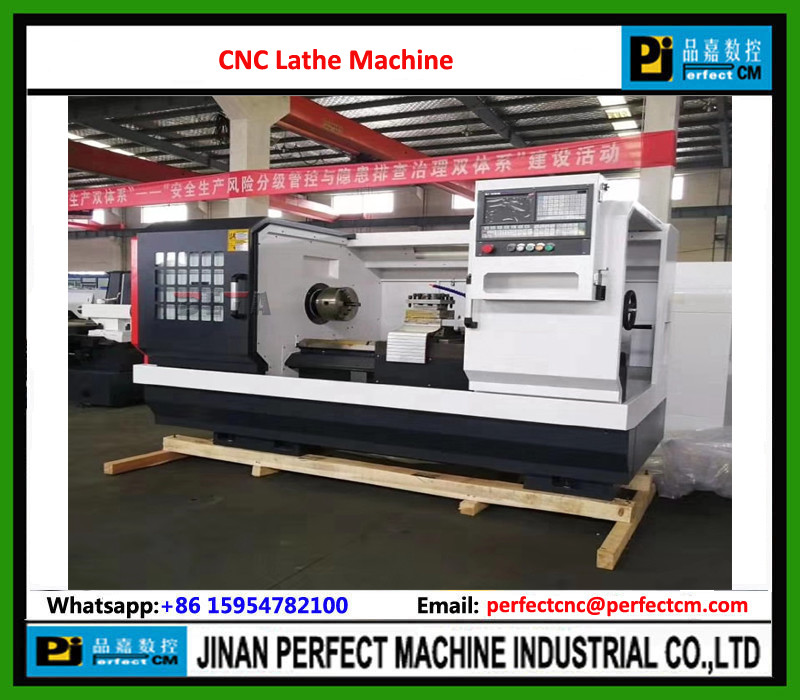

CNC Lathe Machine (Model CK6150)

  • CNC Lathe Machine (Model CK6150)
Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number CK6150
Minimum Order Quantity 1
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
Leave a Message
Product Description

CNC Lathe Machine



Model CK6150





Features:



  • Backward tilting chip removal method, the guide rail adopts super audio quenching, so the machine tool has good rigidity Performance, precision and accuracy retention.
  • The main shaft adopts three-point support, manual three-gear structure, frequency conversion control to ensure the rigidity of the main shaft Cutting with high speed and high torque.
  • Fully enclosed protection, good waterproof performance, reliable protection of motors and switches in the work area, It is suitable for wet cutting operation under coolant environment.
  • Using Paint spraying process, lacquer is not easy to fall off.
  • Mature product structure, excellent performance, reasonable price and high market share.



Main Specification:

Items Unit CK6150
Capacity Max.Swing Dia. Over Bed mm Ø500
Max.Swing Dia. Over Slider mm Ø300
Max. Workpiece Length mm 2000
Spindle Spindle Hole mm Ø 82
Spindle Grade   third (frequency conversion)
Spindle Speed (Variable) rpm 150-2000/60-1600
Motor Spindle Motor Power KW 7.5
X,Z Axis Torque Nm 5/7.5
X,Z Axis Fast Moving Speed m/min. 6/8
Tool Post No. Of Tool Post Electric Type 4
Max. Size Of Toolshank mm 25x25
Precision X Axis Positioning Accuracy mm 0.015
X Axis Re-Positioning Accuracy mm 0.01
Z Axis Positioning Accuracy mm 0.015
Z Axis Re-Positioning Accuracy mm 0.01
Roundness mm 0.005
Flatness mm 0.025/300
Processing Accuracy mm IT6-IT7
Tool Post Re-Positioning Accuracy mm 0.004
Weight Dimension mm 3400x1300x1680
Power Capacity KVA 15
Net Weight KG 2400
