CNC Fiber Laser Cutting Machine (Plate Size : 2000mmx12000mm)

  • CNC Fiber Laser Cutting Machine (Plate Size : 2000mmx12000mm)
Place of Origin CHINA
Brand Name Perfect
Model Number LC2012
Minimum Order Quantity 1
Packaging Details standard
Delivery Time 10 Days
Payment Terms L/C, T/T
Supply Ability 20/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Cooling Method Water Cooling
Control System CNC Max Moving Speed 10m/min
Power Supply 380V 50HZ Material Compatibility Metal, Wood, Plastic
Cutting Thickness Up To 30mm Software CAD/CAM
Cutting Area 2000mm X 12000mm Cutting Method Laser/Plasma
Leave a Message
Product Description

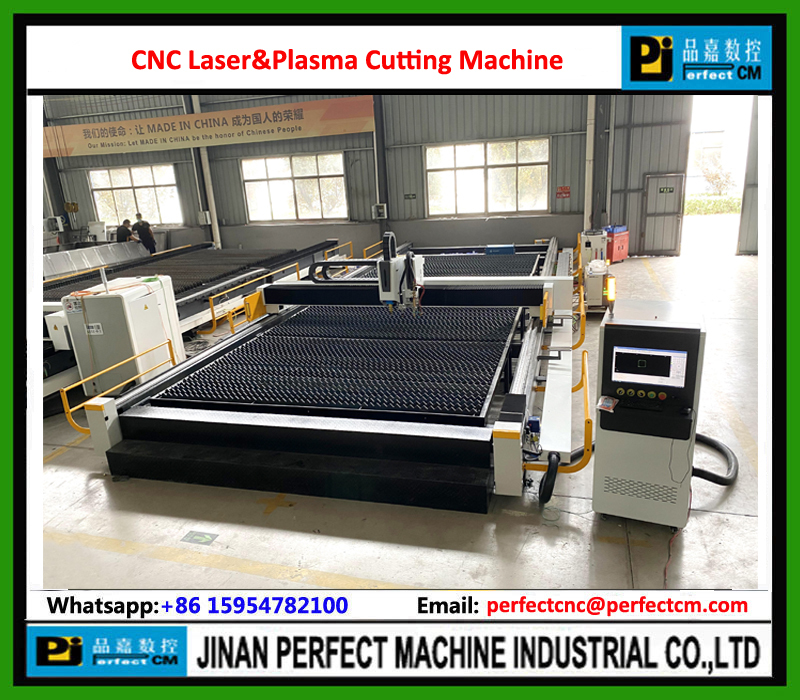

CNC Fiber Laser Cutting Machine (Plasma / Flame Cutting In Option)

Model LC2012

This machine is mainly for laser/plasma cutting big plate sheet. The worktable size can be specialized made.


Details Technical Specifications:

Name Parameters Unit
Machine Model LC2012
Max.Processing Workpiece Size 2000x12000 mm
X axis 2000mm
Y axis 12000mm
Z axis 240mm
Laser Source The MAX 6000W/12000W/20KW W
Water Cooler Power 6/12/20 KW
Software Raytool
Laser Head Raytool
Guide Taiwan Kotec Linear guide rail
Servo Motor Panasonic
Reducer Japanese SHIMPO
Minimum Cutting Width 0.1 mm
Max Cutting Thickness

Laser:30mm / 40mm

Plasma: 40mm (In Option)

Flame: 200mm (In Option)


Maximum Moving Speed 80 m/min
Electricity Requirements 380V, 50/60HZ V/HZ
Graphic Format Supported PRO/E.UG, Solidworks
Acceleration 1 G
Total Power 45 KW
Presser Of N2/O2/Air 15-20/6-8/15-30 bar
Total Weight 8 t
Work Per Day 16 h
Plasma Cutting Head 200A, cutting thickness up to 40mm In Option
Flame Cutting Head Cutting thickness up to 200mm In Option

CNC Fiber Laser Cutting Machine (Plate Size : 2000mmx12000mm) 0
