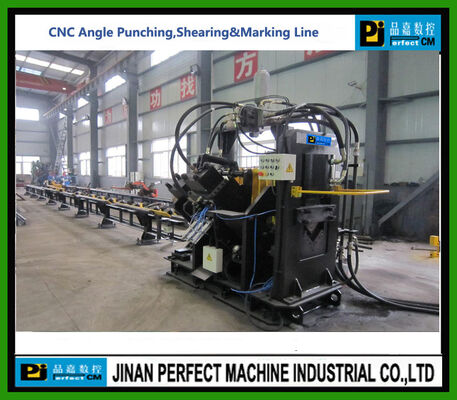

CNC Angle Punching, Shearing & Marking Line (Model BL1412A) CNC Angle Line for angle size 140X140X12mm

  • CNC Angle Punching, Shearing & Marking Line (Model BL1412A) CNC Angle Line for angle size 140X140X12mm
Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number APM2020
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
Leave a Message
Product Description

CNC High Speed Angle Marking, Punching And Shearing Line



Specifications:

Model BL1010 BL1616 BL1412A APM2020
Angle Size (mm) 40x40x3～ 100x100x10 40x40x3～ 160x160x16 40x40x3～ 140x140x12 50х50x3～ 200х200х20
Max. Punching (Dia. х Thi.) (mm) Φ26х10 Φ26х12 Φ26х12 Φ26х20
Punching Force (KN) 600 600 600 1000
Marking Force (KN) 800 800 800 800
Cutting Force (KN) 1000  2100 1800 3800
Max. Length Of Blank (m) 10 12 12 14
Max. Length Of Finished (m) 8 12 12 14
Punches Per Side 2 2 2 3
Qty.of marking group 4 4 4 4
Character size(mm) 14×10×19 14×10×19 14×10×19 14×10×19
Qty.of CNC axis 3 3 3 3
Shearing mode Single Blade Cutting Double Blade Cutting Single Blade Cutting Single Blade Cutting
Feeding speed of angle(m/min) 80 70 60 50
Total Weight (kgs) 13000 14500 15000 16500
Overall Dimensions (L×W×H ) m 23x6.5x2.5 25.4x7x2.2 25.4x7x2.2 32x7x2.6



















































Technical Charecteristics:


1. Integrateded machine with mechanical, electrical and hydraulic elements;
2. Numerical controlling, three axes servo motor feeding;
3. Infinite gaugelines and no limits of the hole rows;
4. Imported electronic, hydraulic and pneumatic elements;
5. Easy programming, connectable with data files generated directly by copying the specimen;
6. Diagrammatic display of workpiece;
7. Adapted to angles with great bending deflection;


Advantages:


1. Rigid and compact structure
2. High productivity with automatic marking, punching, cutting off and stacking operations;
3. High meterial utilization with optimum pattering;
4. Low labour working strength and high precision of workpieces.
