Product Description

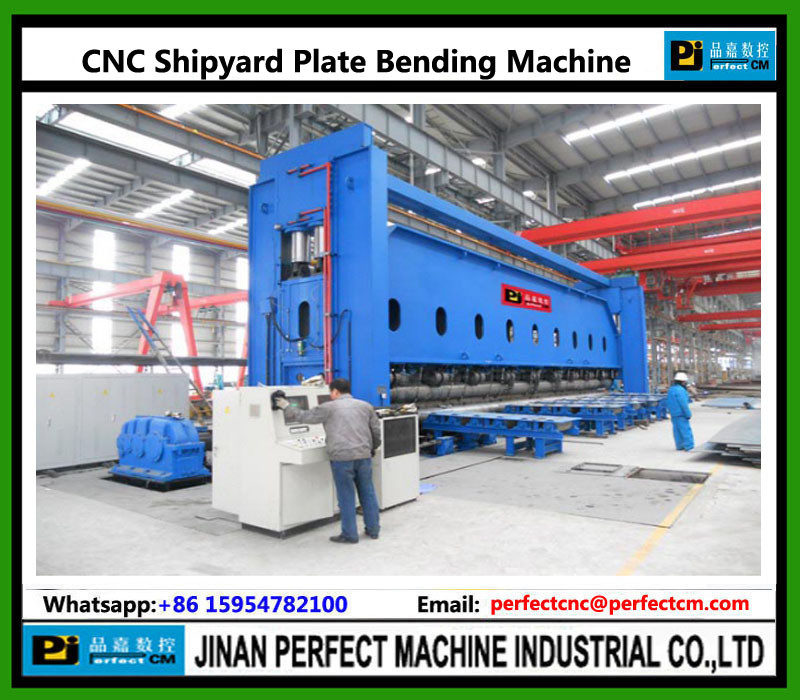

CNC Ship Plate Bending Machine

Model WE11N-30x9000



Detailed Product Description:

This machine is used to bend the large plate for the shipbuilding industry.

1. This Machine is developed and designed under the guide of our Germany expert,we have the whole independent intellectual property.
2. The machine is composed of the top roller assembly, bottom roller assembly, bed, left frame, right frame, support roller assembly, balance assembly, main drive assembly, oil cylinders, hydraulic system and electric system.

3. Adopt double main motors driving system which has the advantage of compact in structure, good in performance, low in energy consumption.

4.We have export the machine WE11N-35X13 500 to vietnam (Thickness 35mm,length 13500mm).



Specifications:

No. Name Technical Data
1 Model WE11N-30x9000
2 Maximum bending Plate Width 9000mm
3 Rollers Working Length 9100mm
4 Maximum Plate Thickness 30mm
5 Plate Yield Strength 255MPa
6 Top Roller Diameter Φ 380mm
7 Top Roller Inclining quantity ±150 mm
8 Top Roller Stroke 350mm
9 Bottom Roller Diameter Φ 320mm
10 Roller’s Material 42CrMo
11 Roller’s Hardness HB260~290
12 Center Distance Between Two Bottom Rollers 550mm
13 Hydraulic System Pressure 25MPa
14 Bending Speed 3.5m/min
15 Min. Rolling Diameter With Maximum Plate Width and Maximum Plate thickness 2000mm
16 Top Roller Maximum Full Load Pressure Adding Speed About 100mm/min
17 Top Supporting Roller Diameter Φ 220mm
18 Bottom Supporting Roller Diameter Φ 190mm
19 Supporting Roller Groups 4 no.s
20 Main Motor Power 40KW
21 3 phase Voltage 380±20V, 50±5 Hz
