CNC Angle Drilling and Marking Line

  • CNC Angle Drilling and Marking Line
Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number BL2532
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
High Light

cnc angle line

,

Angle Drilling Machine

,

angle drilling line
Leave a Message
Product Description

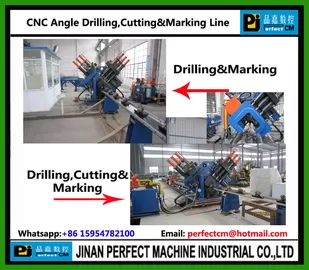

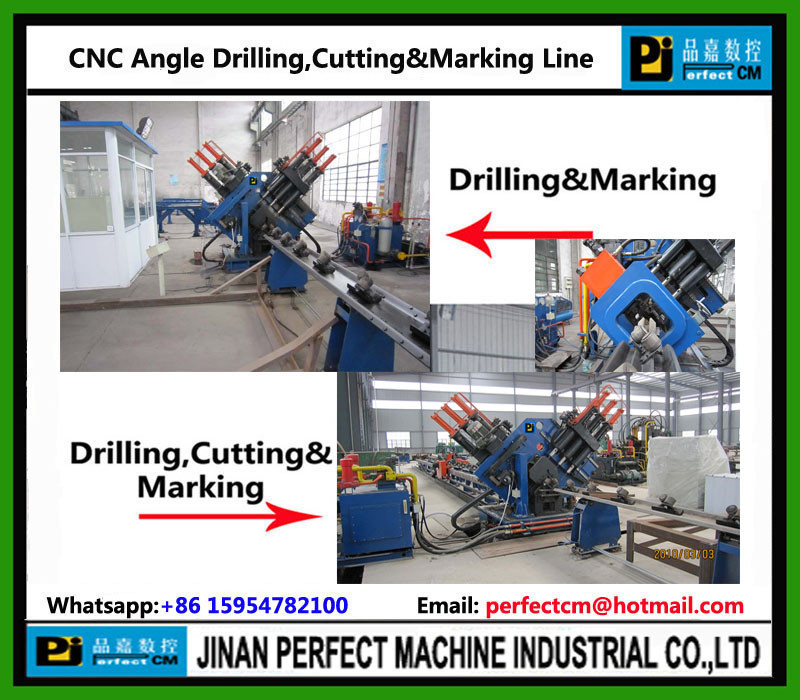

CNC Angle Drilling and Marking Line



APPLICABLE INDUSTRY:

The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.



PRODUCT COMPOSITION:

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, drilling unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.



SPECIFICATIONS:

Model

BL2532

Angle Size(mm)

140x140x10~250x250x32

Marking Force(Kn)

1030

Max. Length Of Blank(m)

14

Double Blade Cutting Force(KN)

1400, up to 200x200x20mm (optional)

Single Blade Cutting Force (KN)

4500, up to 200x200x20mm (optional)

Circular Saw Cutting Speed(Mt/Min)

80-180, up to 250x250x32mm (optional)

Max. Length Of Finished(m)

14

No. Of Drill An Each Side(Piece)

3

No. Of Character Group(Piece)

1

No. Of Character In Each Character Size(Piece)

15

Character Side(mm)

14×10×19

Range Of Back Mark (mm)

50-220 (Stepless)

CNC Axes(Piece)

3

Spindle Rotation Speed(r/Min)

180－560,Transducer Stepless Adjustment

Feeding Speed Of Angle(m/Min)

40

Diameter Of Drilling(mm)

Ф13.5~Ф40

Stroke Of Spindle(mm)

180

Processing Precision

Accordance With GB2694-81

Programming Mode

Input By Keyboard, RS232 Interface, Floppy Disk And USB Interface

Overall Dimensions (m)

32×8.9×3.2

Gross Weight Of Machine(Kg)

Approx.17000

Total Power(Kw)

35
