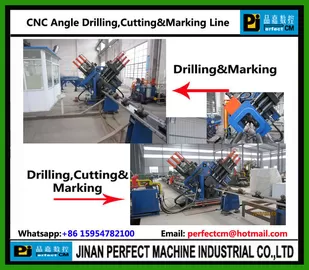

CNC High Speed Angle Drilling and Marking Line

  • CNC High Speed Angle Drilling and Marking Line
Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number ADM2532
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
High Light

cnc angle line

,

Angle Drilling Machine

,

angle drill line
Leave a Message
Product Description

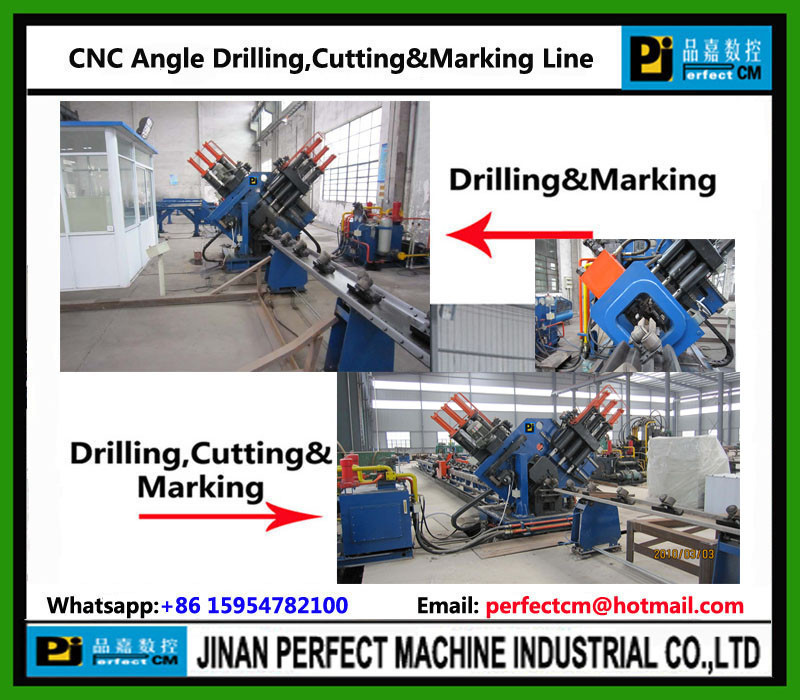

CNC High Speed Angle Drilling and Marking Line



Applicable Industry:

The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.

Specifications:

Model ADM2532
Angle size(mm) 140x140x10-250x250x32
Max. length of blank(m) 12 /14(by users request)
Marking force(kN) 1030
No. of character group 1
No. of character 15
Character size (mm) 14X10X19
Range of stadia(mm) 50-220 stepless
No. of drill on each side 3
Taper of drilling spindle BT40
Max. drilling diameter (mm) 26
Stroke of Spindle(mm) 140
Max. Spindle rotation speed(r/min) 6000
Max. feeding speed (m/min) 40
Max. moving speed of slipway of drilling head(m/min) 10
Max. feeding speed of drilling head(m/min) 14
No. of CNC axes 9
Overall dimensions(m) 30X7.5X3
Total power(kW) 109.7
Machine weight (kg) 30000
