CNC Gantry Type Drilling Machine for Plate (Model PD2010/PD2012/PD2016/PD3016)
Product Details
| Minimum Oeder Quantity | 1 | Payment Terms | TT |
|---|---|---|---|
| Supply Aility | 10000 |
Product Description

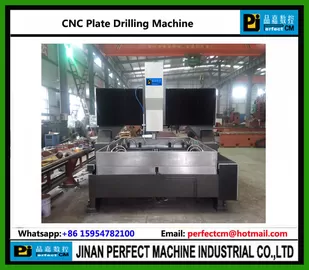

CNC Gantry Type Drilling Machine for Plate (Model PD2010/PD2012/PD2016/PD3016)
Applicable Industry:
Special CNC machine for Drilling steel plates, flange and round plate in the field of steel structure industry. It is also used to drill steel plates of other industries.
Specifications:
| Model | PD2010 | PD2012 | PD2016 | PD3016 |
| Max Size Of Work Piece L×W(Mm) | 2000x1000 | 2000x1200 | 2000x1600 | 3000x1600 |
| Max. Drilling Diameter (Mm) | Φ50 | Φ50 | Φ50 | Φ50 |
| Max.Drilling thickness of plate (mm) | 100 | 100 | 100 | 100 |
| Drill Head Quantity | 1 | 1 | 1 | 1 |
| Power Of Main Motor (KW) | 5.5 | 5.5 | 5.5 | 5.5 |
| Spindle Speed | 120～560 (Frequency Control) | 120～560 (Frequency Control) | 120～560 (Frequency Control) | 120～560 (Frequency Control) |
| Drive Mode Of Gantry Longitudinal (X Axis) | Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. | Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. | Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. | Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. |
| Positioning Speed (mm/Min) | 8000 | 8000 | 8000 | 8000 |
| CNC Axis Quantity | 3 | 3 | 3 | 3 |
| Electric Control Type | MISTUBISHI PLC | MISTUBISHI PLC | MISTUBISHI PLC | MISTUBISHI PLC |
| Total Weight (kgs) | 5200 | 6200 | 7200 | 8200 |
|
Overall Dimensions (L×W×H ) mm |
3000×1950×2790 | 33000×2150×2790 | 3000×2420×2790 | 5470x2610x2855 |
Should Your Excellency need more information about us, please send us your inquiry.
We warmly welcome customers to visit our factory at any time. No wait, please order now!
Skype: susancql
Mobile: 0086-15954782100 (What'sapp)
GTalk: jnfastcnc@gmail.com
E-mail: chengsusan2004@hotmail.com;
perfectcm@hotmail.com;
Website: www.perfectcm.com
Thanks and Best Regards,
Ms. Susan
Marketing Director
PERFECT MACHINE
