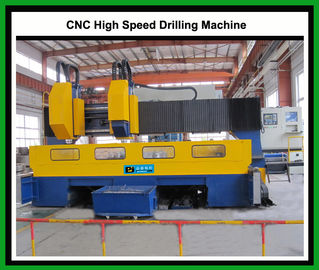

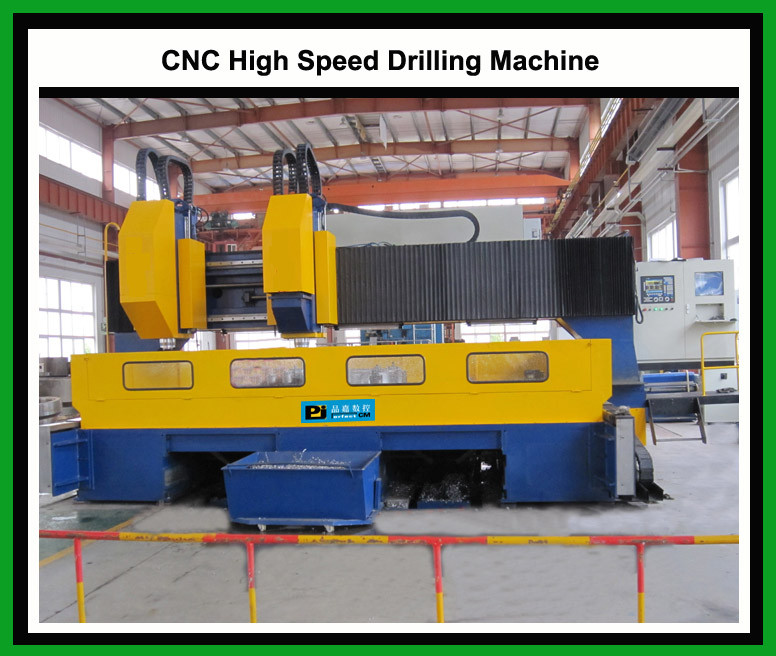

High-Speed CNC TubeSheet Drilling Machine (Model PHD6060-2)
|Minimum Oeder Quantity||1||Payment Terms||TT|
Hydraulic Press Brake shearing machine straightening machine cnc angle line power transmission tower line,
CNC Plate Leveling Machine cnc punching machine cutting machine marking machine,
cnc drilling machine shearing machine notching machine
High-Speed CNC TubeSheet Drilling Machine For Heat Exchanger / Pressure Vessel
Detailed Product Description:
1. This machine is designed through the feature of heat exchanger,it can finish drilling the hole of tubesheethole of bolt and drilling of sheet,also it can be used for handling of joint plate of steel construction and products etc.
2. It has the system of clampautomatic removal and refrigeration circulation.
3. It has 1-2 power heads which makes it work high efficiently.
4. Advanced CNC power head feed-in system.
5. All kinds of safe monitor and alarm stop system:the machine will stop if the drill breaks or other contingency happens,in order to avoid mechanical failure.
6. Easy operation,lower the possibility of misoperation and the affect of human factor to the quality of the machine.
7. Realizing CAD/CAM(can be operated once the interrelated file is folded.
Max workpiece dimension Max drill center to center distance(mm) 6000x6000
Max plate thickness(mm) 250
Work bench T-slot width/distance(mm) 28/550
Drilling power head Quantity 2
Main axes taper hole BT50
Max drilling diameter(mm) 40(hard metal drills)
50(high-speed steel auger bit)
Main axes roating speed
(stepless frequency conversion timing)r/min 30-2000
Main axes motor power(kw) 222
The distance between the lower part of the axes and the work bench(mm) 280-780
Longitudinal movement(X axes) Max stroke(mm) 6000
X axes movement speed(m/min) 0-8
X axes spindle drive power(kw) 23
Lateral movement(Y axes) Max distance between the two main axes(mm) 6000
Y axes movement speed(m/min) 0-8
Y axes spindle drive power(kw) 23
Vertical ram feed-in movement(Z axes) Max stroke of Z axes 500
Z axes feed-in speed(m/min) 0-4
Z axes spindle drive power(kw) 23
Positioning accuracy XY axes(mm) 0.1/(overall length=5m)
Repeat positioning accuracy XY axes(mm) 0.05
Hydraulic system Pressure of hydraulic pump/flux(L/min) 7/25
Hydraulic pump motor power(kw) 3
Clip removal and cooling Form of clip cleaner Flat chain
Number of clip cleaner 2
Speed of clip removal(m/min) 1
Clip removal motor power(kw) 20.75
Cooling pump motor power )kw) 23+0.75
Outline dimension LWH(m) About 126.96.36.199
Machine weight(t) About 55
