CNC Drilling Machine for Plate

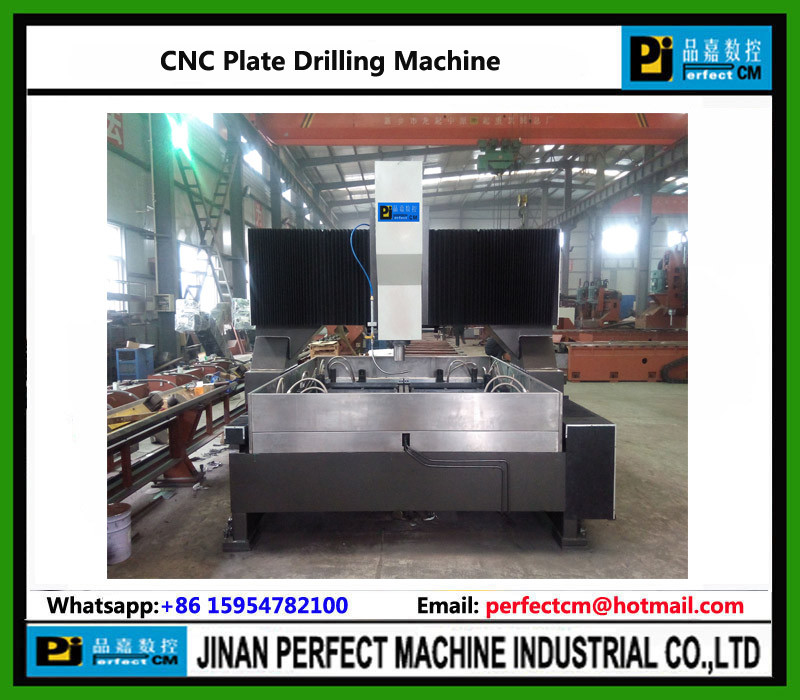

Gantry Type CNC Drilling Machine for Steel Plate

Applicable Industry:

CNC gantry plate drill is a special CNC machine for drilling connection boards and base plates of steel structure, tower, bridge and other industries.

Product feature:

1. CNC slider and drilling unit head can control depth of holes, with function of drilling blind hole, reaming, and chamfer angle.

2. Can automatically find holes to drill at X. Y axis.

3. Four processing position, 12 rapid hydraulic clamps, capable of clamping four sets of work pieces, and downloading work pieces when drilling simultaneously.

4. CNC, PLC systems, CRT display.

5. Programming software based on WINDOWS platform with CAD connection, fast and convenient programming, and visual previewing.

6. Automatic chip removal, coolant circulation cooling.

7. Key machinery, hydraulic pressure, electric components are chose from famous cooperation domestic and abroad.

8. Optimized integration design for complete machine, no foundation requirements.

Technical data:

Name Specifications

Machine type Gantry moveable single spindle CNC drilling machine

Max work piece size (L W) 2000x1200mm(1 piece)

1200 1000mm(2 pieces)

1000 600mm(4 pieces)

Thickness of work piece 15~80mm

Height from table top to ground 800mm

Drill unit type sliding table, servo control

Clamp type Hydraulic clamp with 12 clamps

Drill head quantity 1

Max drill diameter 50mm

Power of main motor 5.5 kW
