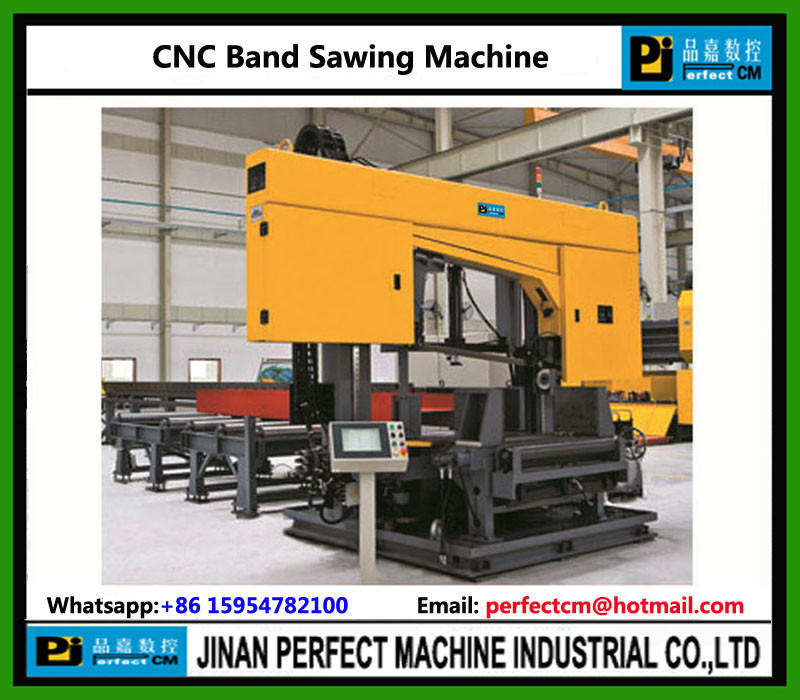

CNC Band Sawing Machine (Model DJ1000/DJ1250)

  • CNC Band Sawing Machine (Model DJ1000/DJ1250)
Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number DJ1000/DJ1250
Minimum Order Quantity 1
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
Leave a Message
Product Description

CNC Rotation Angle Band Sawing Machine
Model DJ1000/DJ1250

APPLICABLE INDUSTRY:
The machine is mainly used to cut H-beams,Channels,Pipes and other profiles etc.

PRODUCT FEATURE:
1. The machine is mainly composed of sawing fram, worktable, vertical feeding device, vertical pressing device, rotation worktable, carriage for feeding workpiece, hydraulic system, cooling system and electric system etc.
2. The feeding speed can be adjusted automatically according to different section and also realize reciprocating saw.
3. High efficiency and high precision rotation angle positioning.
4. The machine is equipped with clamp carriage which can automatically identify the infeed length of H-beam, which can get automatically control of all the process.
5. Use touch screen to input the dimension of the workpiece, the processing data can be shown and monitored real-time.
6. Powerful sawing capacity is specially designed for processing different kinds of profiled bars in steel structure industry.

Specifications:

Model

DJ1000

DJ1250

Dimensions For H-Beams
Web Height x Flange Width (mm)

Max. 1000x500

Max. 1250x600

200x75

Saw Blade Size (mm)

T:1.6;W:54;L:8500

T:1.6;W:67;L:9300

Saw Blade Lineal Speed (m/min)

20~100

Table Height (mm)

800

Feeding Speed

Programmable control

Rotation Angle

0~45 degree

Host Motor Power (Kw)

11

15

Hydraulic Motor Power (Kw)

5.5

Main Clamping Hydraulic Motor Power (Kw)

100

Front Clamping Hydraulic Motor Power (Kw)

100

Overall Dimensions Of Machine (mm)

4050x2300x2700

4400x2300x2800

Total Weight Of Machine (kgs)

9000

11000
