Beam Flipper Machine

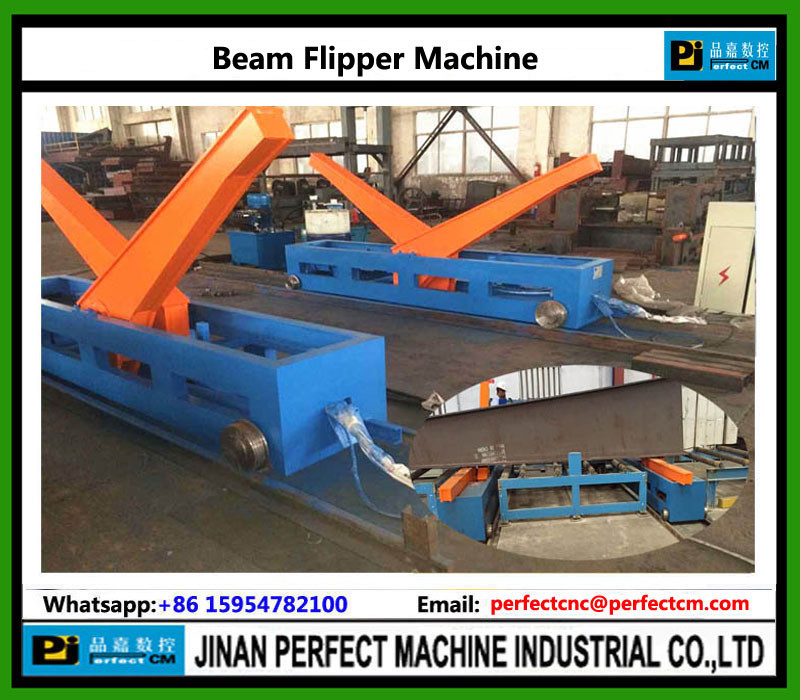

180° Beam Flipper Machine (Movable Hydraulic Tilting Bracket )

Model YF Series

1. Characters:

       Walking type 180 °tilting bracket is consist of main body, hydraulic system and electirc control system. Main body is consist of 90°tilting arm ,pedestal,walking roller ,walking motor & reducer and railway .

       When it is working ,it carries beam ,motor drives two units tilting brackets moves at the same time, then make h beam move to side of middle of roll,at last ,it tilts h beam with 180°,then it moves to middle position of roll for next transmitting.. Cable distribution adopts chain transmitting,its safe beautiful,reliable and compact,very convenient to operate.

2. Technical parameters:

l  Max weight :                      4 ton-20Tons

l  Tilting max section size :    800*800mm or Bigger Sizer

l  Length of H beam:             6-12 m

l  Walking motor power :       0.75KW

l  Walking speed :                  6m/min

l  Tilting oil cylinder diameter :  80mm

l  Max Hydraulic pressure :    16Mpa

l  Hydraulic pump power :      5.5 KW
