Product Description

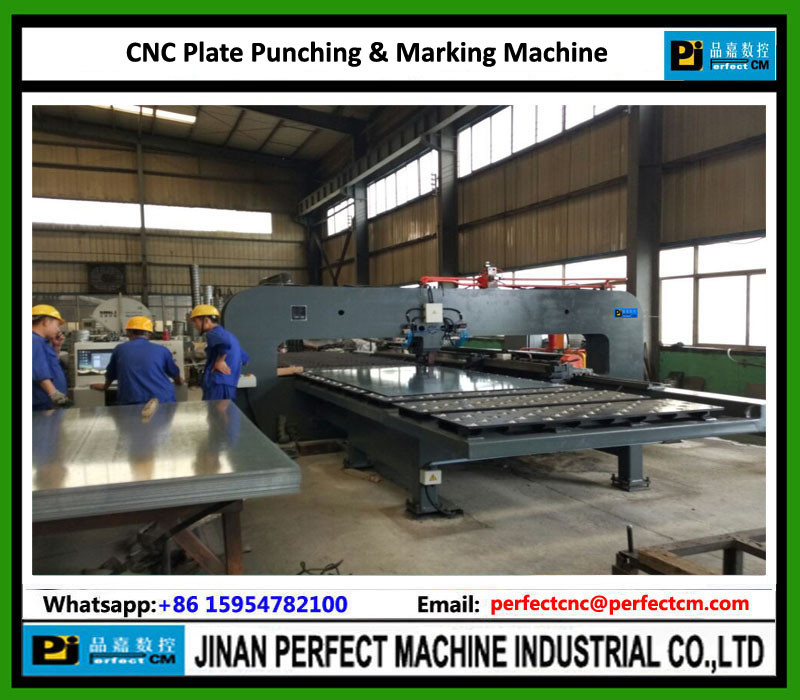

CNC Punching Machine for Big Plate Sheet (5000x2000mm,4000x2000mm,3000x2000mm)



Applicable Industry:


Special CNC machine for punching of big Steel plates in the field of steel tower industry and steel structure and etc.



Power: Three phase four wire systems

AC Voltage: 380 V (Can design according to customers’ required Voltage)

Fluctuation of voltage: ±5%

Frequency: 50Hz

Local working temperature: 0—40℃





Model PP2010 PP3020 PP4020 PP5020
Max size of work piece L×W(mm) 2000x1000 3000x2000 4000x2000 5000x2000
Max. diameter of punching (mm) Φ26
Plate thickness of punching (mm) 4~20 (Q235) or up to 30mm

4~25 (Q235)

4~20 (Q420, 16Mn)

or up to 30mm

Max. diameter of drilling (mm) Φ50 or up to 60mm
Plate thickness of drilling (mm) 40
Punching force (kN) 1000/1200/2000/3000/4000
Min. distance between hole and plate edge (mm) Punching 25


Feeding speed of Plate(m/min) 20
Precision Accordance with GB2694
Programming mode Input by keyboard, RS232 interface, floppy disk and USB interface
