Product Details:
Payment & Shipping Terms:
|
| Minimum Oeder Quantity: | 1 | Payment Terms: | TT Lc |
|---|---|---|---|
| Supply Aility: | 100000 |

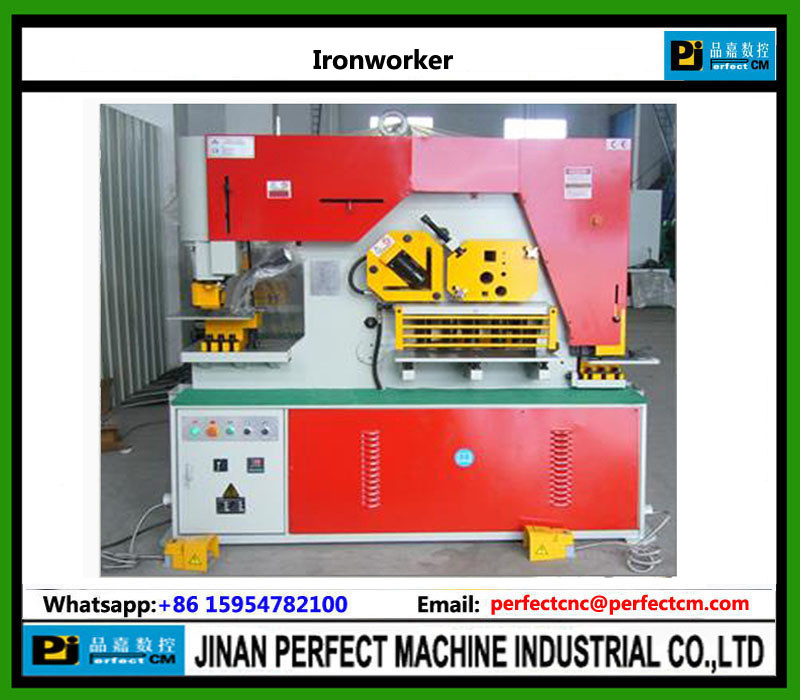

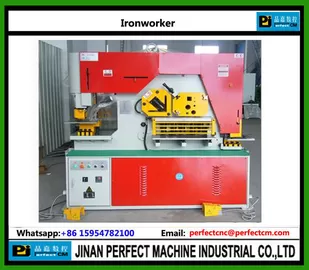

Hydraulic Ironworker
Model Q35Y Series
E-Series Hydraulic Ironworker:
We adopt hydraulic driving system and they are the latest iron workers in our country, various metal plate, square bar, Round bar, angle, channel and joist can be cut, punched and notched on the machine. It is also equipped with a stop device for cutting.
Technical Data:
|
Model |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Q35Y-40 |
Q35Y-50 |
|
Punching Pressure(T) |
60 |
90 |
120 |
160 |
200 |
250 |
|
Max Shearing Thickness (mm) |
16 |
20 |
25 |
30 |
35 |
40 |
|
Plate Strength(N/mm2) |
≤450 |
≤450 |
≤450 |
≤450 |
≤450 |
≤450 |
|
Shearing Angle |
8° |
8° |
8° |
8° |
8° |
8° |
|
Flat Bar(H*W)(mm) |
8×400 16*250 |
20×330 10×480 |
25×330 16×660 |
30×355 20×600 |
35×380 25×700 |
40×400 30×750 |
|
Ram Stroke(mm) |
80 |
80 |
80 |
80 |
800 |
100 |
|
Number of Stroke (times/min) |
8 |
8 |
8 |
8 |
8 |
8 |
|
Throat Depth(mm) |
300 |
355 |
400 |
600 |
560 |
560 |
|
Punching Thickness (mm) |
16 |
20 |
25 |
26 |
30 |
35 |
|
Max Punching Diameter(mm) |
25 |
30 |
35 |
38 |
40 |
45 |
|
Main Motor Power (kw) |
4/5.5 |
5.5/7.5 |
7.5/11 |
11/15 |
15/18.5 |
18.5/22 |
|
Overall Dimensions L×W×H(mm) |
160*800*1780 |
1950×900(1120)×1930 |
2350×980(1240) ×2100 |
2680×1060(1360) ×2380 |
2800×1160(1520) ×2400 |
3000×1440(1760) ×2450 |
|
Weight(kg) |
1800 |
2600/2800 |
4800/5000 |
6600/7200 |
7500/8000 |
10800/11200 |
