Best Seller CNC Gantry Type Plate Drilling Machine Used in Steel Structure Industry (PD2012)

  • Best Seller CNC Gantry Type Plate Drilling Machine Used in Steel Structure Industry (PD2012)
  • Best Seller CNC Gantry Type Plate Drilling Machine Used in Steel Structure Industry (PD2012)
  • Best Seller CNC Gantry Type Plate Drilling Machine Used in Steel Structure Industry (PD2012)
Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number PD2012
Minimum Order Quantity 1 set
Price USD
Packaging Details STANDARD
Delivery Time 30
Payment Terms TT, LC
Supply Ability 100
Product Details
Cnc Drilling Machine Plate Drilling Machine Drilling Machine Cnc Machine
Leave a Message
Product Description

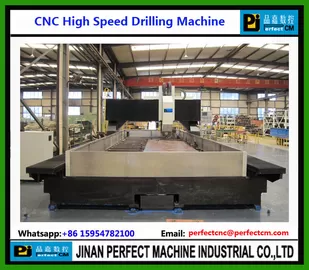

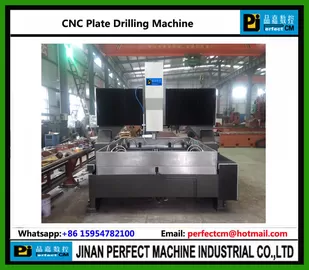

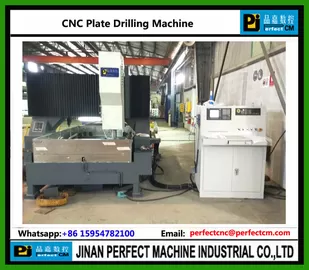

CNC Gantry Type Drilling Machine for Plate



(Model PD2010/PD2012/PD2016/PD3016)





1. Applicable Industry:



Special CNC machine for Drilling steel plates, flange and round plate in the field of steel structure industry. It is also used to drill steel plates of other industries.



2. Special Advantages than Other Suppliers:

  • 2.1 Linear Guide Rollers Upwards Structure (Our National Patent): This machine’s guide rollers are in upwards direction, this structure can improve the whole machine’s accuracy greatly. Other supplier installs the guide on the right and left of the machine body. (Only our company in China use this structure.)
  •
  • 2.2 Stainless Steel Fence: We adopt higher Stainless steel fence structure, Beautiful looking, practical & more safe.
  •
  • 2.3 Automatic Lubrication System: It can guarantee the machine’s good working performance, extend the machine’s life & reduce the labor work.

Best Seller CNC Gantry Type Plate Drilling Machine Used in Steel Structure Industry (PD2012) 0

  • 2.4 Gantry Locking Mechanism (Our National Patent): We add Gantry Locking Mechanism, which clamps the main spindle tightly, can ensure the higher accuracy when drilling. (Only our company in China use this structure.)
  •
  • 2.5 Use Siemens CNC Control System.



3. Specifications:



Model PD2010 PD2012 PD2016 PD3016
Max Size Of Work Piece L×W(Mm) 2000x1000 2000x1200 2000x1600 3000x1600
Max. Drilling Diameter (Mm) Φ50 Φ50 Φ50 Φ50
Max.Drilling thickness of plate (mm) 100 100 100 100
Drill Head Quantity 1 1 1 1
Power Of Main Motor (KW) 5.5 5.5 5.5 5.5
Spindle Speed 120～560 (Frequency Control) 120～560 (Frequency Control) 120～560 (Frequency Control) 120～560 (Frequency Control)
Drive Mode Of Gantry Longitudinal (X Axis) Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs.
Positioning Speed (mm/Min) 8000 8000 8000 8000
CNC Axis Quantity 3 3 3 3
Electric Control Type MISTUBISHI PLC MISTUBISHI PLC MISTUBISHI PLC MISTUBISHI PLC
Total Weight (kgs) 5200 6200 7200 8200
Overall Dimensions (L×W×H ) mm 3000×1950×2790 33000×2150×2790 3000×2420×2790 5470x2610x2855

































































































































We welcome customers to visit our factory at any time. No wait, please order now!


Should Your Excellency need more information about us, please send us your inquiry.

Skype: susancql
Mobile: 0086-15954782100 (What'sapp)

Thanks and Best Regards,

JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
