CNC Hydraulic Plate Punching, Drilling & Marking Machine

 (Model PP103/PP104)



CNC Hydraulic Plate Punching& Drilling Machine Iron Tower Manufacturing Machines Plant in China (PPD103) 0



Applicable Industry:



Special CNC machine for punching,drilling and marking of steel plates in the field of steel tower industry and steel structure. It is also used to punch,drill and mark of steel plates of other industries.



Product Feature:

  • The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different work piece, with zero baffles as datum mark, and work piece supported by rolling-ball working table. Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of work piece to computer for repeated calling program in the future.

  • Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
  • Important functional components adopt modular assembly, easy to repair it.
  • Can do punching & marking on the one plate.
  • Easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.
  • With function of failures self-diagnosis.
  • Lighten the working strength of workers.

Power: Three phase four wire systems

AC Voltage: 380 V (Can design according to customers’ required Voltage)

Fluctuation of voltage: ±5%

Frequency: 50Hz

Local working temperature: 0—40℃



Specifications:



Model PPD103 PPD104 PPRD103 PPRD104
Max size of work piece L×W(mm) 1500×800 1500×1000 1500×800 1500×1000
Max. diameter of punching (mm) Φ26
Plate thickness of punching (mm) 4~20 (Q235)

4~25 (Q235)

4~20 (Q420, 16Mn)

Max. diameter of drilling (mm) Φ50
Plate thickness of drilling (mm) 40
Punching force (kN) 1000
Marking force (kN) 1000
Min. distance between hole and plate edge (mm) Punching 25
  Drilling Depends on hole diameter
Dimensions of characters (mm) 14×10×20
Quantity of characters 14
Die-stations

4

(two punching stations, one marking station & one drilling station)

Feeding speed of Plate(m/min) 20
Rotation speed of drilling spindle(r/min) 120~560
Precision Accordance with GB2694
Programming mode Input by keyboard, RS232 interface, floppy disk and USB interface

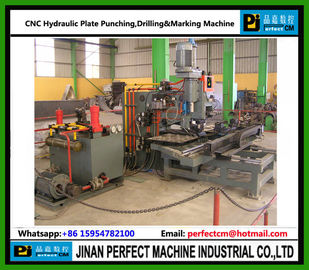

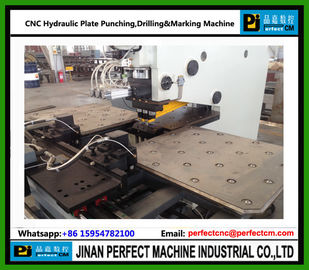

CNC Hydraulic Plate Punching& Drilling Machine Iron Tower Manufacturing Machines Plant in China (PPD103) 1    CNC Hydraulic Plate Punching& Drilling Machine Iron Tower Manufacturing Machines Plant in China (PPD103) 2

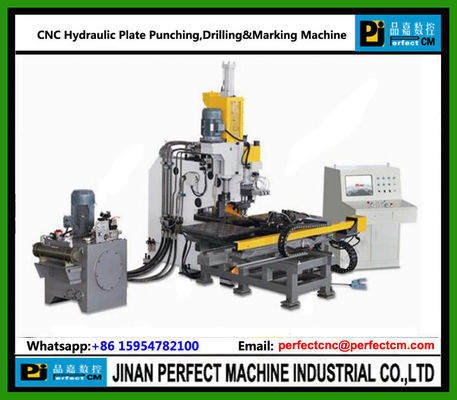

CNC Hydraulic Plate Punching& Drilling Machine Iron Tower Manufacturing Machines Plant in China (PPD103) 3   CNC Hydraulic Plate Punching& Drilling Machine Iron Tower Manufacturing Machines Plant in China (PPD103) 4
