CNC High Speed Multi Spindles Drilling Machine for Step Holes, Taper Holes, Milling Groove Sieve holes, Vibration Sieve
Product Details
| Cnc Drilling Machine | Plate Drilling Machine | Drilling Machine | Cnc Machine |
|---|
Product Description

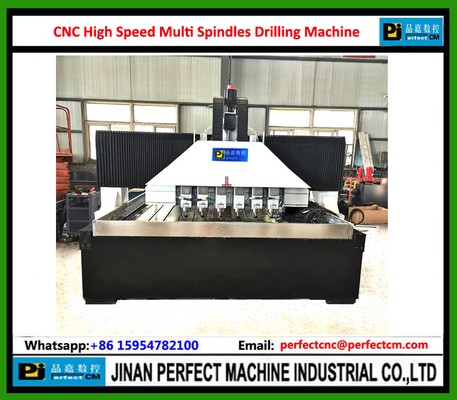

CNC High Speed Multi Spindles Drilling Machine for Thin Plate (Model PZ Series)
Applicable Industry:
Special CNC machine for Drilling steel plates, flange and round plate in the field of steel structure industry. It is also used to drill steel plates of other industries.
Specifications:
| Model | PZ2012 | PZ2016 | PZ3016 | PZ2020 |
| Max Size Of Work Piece WXL(Mm) | 2000X1200 | 2000X1600 | 3000x1600 | 2000x2000 |
| Max. Drilling Diameter (Mm) | Φ8 | Φ8 | Φ8 | Φ8 |
| Max.Drilling thickness of plate (mm) | up to 8mm | up to 8mm | up to 8mm | up to 8mm |
| Drill Head Quantity | 4/6/8 | 4/6/8 | 4/6/8 | 4/6/8 |
| Power Of Main Motor (KW) | 5.5 | 5.5 | 5.5 | 5.5 |
| Spindle Speed | up to 10000rpm | up to 10000rpm | up to 10000rpm | up to 10000rpm |
| Drive Mode Of Gantry Longitudinal (X Axis) | Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. | Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. | Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. | Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. |
| CNC Axis Quantity | 3 | 3 | 3 | 4 |
| Electric Control Type | PLC | PLC | PLC | PLC |
| Workpiece claming way | Without Hydraulic Clamps | Without Hydraulic Clamps | Without Hydraulic Clamps | Without Hydraulic Clamps |
Should Your Excellency need more information about us, please send us your inquiry.
We warmly welcome customers to visit our factory at any time. No wait, please order now!
Thanks and Best Regards,
JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
Skype: susancql
Wechat: Susan20133
Mobile: 0086-15954782100 (What´sapp)
E-mail: perfectcnc@perfectcm.com
Website: www.perfectcm.com
FaceBook: https://www.facebook.com/susancql
