CNC Plate/Tubes/H Beam Laser Cutting Machine

  • CNC Plate/Tubes/H Beam Laser Cutting Machine
Place of Origin CHINA
Brand Name Perfect
Model Number OLT-1560
Minimum Order Quantity 1
Packaging Details standard
Delivery Time 10 Days
Payment Terms L/C, T/T
Supply Ability 20/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Cooling Method Water Cooling
Control System CNC Max Moving Speed 10m/min
Power Supply 380V 50HZ Material Compatibility Metal, Wood, Plastic
Cutting Thickness Up To 30mm Software CAD/CAM
Cutting Area 3000mm X 20000mm Cutting Method Laser/Plasma
Leave a Message
Product Description

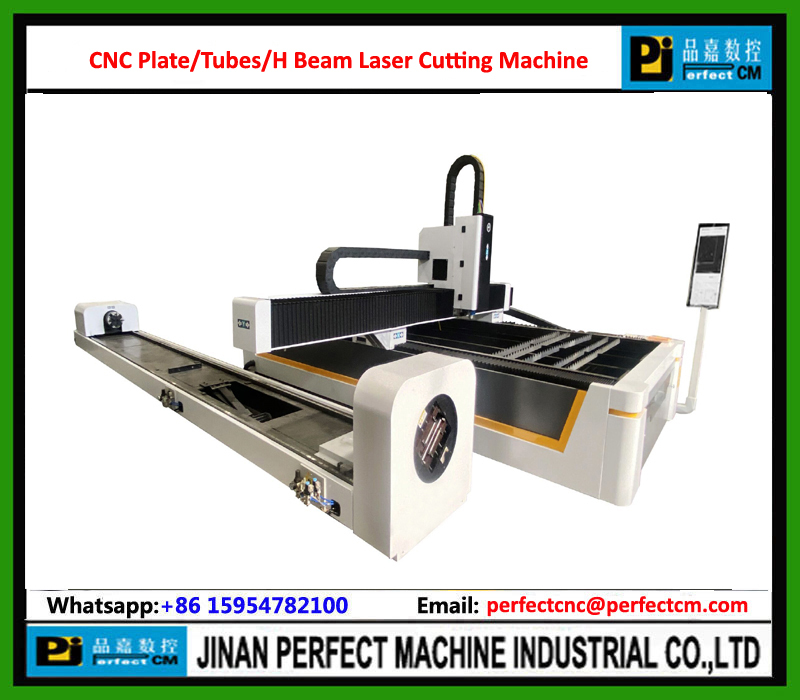

CNC Plate/Tubes/H Beam Laser Cutting Machine

Model OLT-1560 6KW

The Machine is mainly for laser cutting the following size workpiece:


Plate cutting: 1550*6050mm

Tube cutting: max 245*245mm square tube/ round pipe, max length 6m


Machine Parameters:

Name Parameters Unit
Machine model OLT-1560
Laser Source The MAX 6kw kw
Laser Head Raytools BS06K
Clamping chuck 245*245mm square clamping chuck ,fully automatic (heavy duty type, laser automatic centering function)
Water cooler Power 6 kw
Software Ourself
Guide Taiwan Kotec
Rack Germany Vastun
Servo Motor Leadshine/Delta
Reducer Japanese SHIMPO
Water and air lines Professional anti-pressure type
X/Y protection cover Anti-fire and dust proof protection cover
Cables Highly flexible, anti-breaking type, anti-influence.
Bull's eye wheel High strength type, Easy-to-load material
Working platform Serrated blade
Minimum cutting width 0.08-0.1 mm
Maximum moving speed 15 m/min
Electricity requirements 380V 3 phase 50/60hz v/hz
Graphic Format PRO/E.UG, Solidworks
Acceleration 1 G
Total power 50 kw
Presser of N2/O2/Air 15-20/6-8/15-30 bar
Total Weight 3 t
Work per day 16 h
