8 Axis CNC Plasma Cutting Machine for Tube/Pipe

  • 8 Axis CNC Plasma Cutting Machine for Tube/Pipe
Place of Origin CHINA
Brand Name Perfect
Model Number OLT-6012
Minimum Order Quantity 1
Packaging Details standard
Delivery Time 10 Days
Payment Terms L/C, T/T
Supply Ability 20/MONTH
Product Details
Warranty 1 Year Positioning Accuracy 0.05mm
Cooling Method Water Cooling Model OLT-6012
Control System CNC Max Moving Speed 40m/min
Power Supply 380V 50HZ Material Compatibility Metal, Wood, Plastic
Cutting Thickness Up To 25mm Software CAD/CAM
Cutting Area Diameter 500mm Cutting Method Laser/Plasma
Leave a Message
Product Description

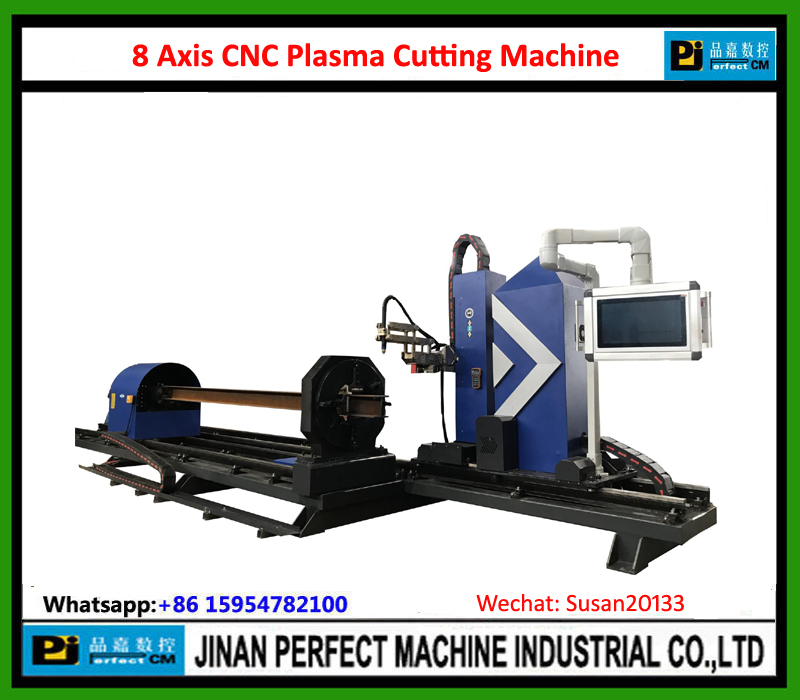

8 Axis CNC Plasma Cutting Machine for Tube/Pipe

Model OLT-6012

Machine Features:
Model OLT-6012 CNC Plasma Cutting machine is the latest high-efficiency and high-precision pipe automatic cutting equipment designed. It is mainly used for cutting various low carbon steel, stainless steel, copper, aluminum and other pipes. It can cut the end surface of the round pipe, the intersection of the circular pipe and the plane, and the various round and round pipes, the surface of the round pipe and the spherical surface, the pipe and the curved surface, the H-shaped steel channel steel, the rectangular pipe and the square pipe. The model is beautiful in appearance, compact in structure, stable in operation and easy to operate. The cutting pipe diameter ranges from 30 to 600 mm and the cutting pipe length up to 12m.

Laser Cutting Machine Parameter:
  • Main Technical Specifications:
Model OLT-6012
The Outer Diameter Of The Tube For Cutting 30-600mm
Flame Cutting Tube Thickness (Optional) 50mm
Plasma Cutting Tube Thickness 25mm
Cutting Pipe Length 12000mm
Round Tube Load 1800KGS
H Beam Size For Cutting 400x400mm
Plasma Power Supply HuaYuan LGK -200IGBT
Flame Cutting Speed (Optional) 100-750mm/min
Plasma Cutting Speed 1000-6000mm/min
Movement Speed 10-8000mm/min
The Torch Repeating Positioning Accuracy ≤ ± 0.03mm
Bus Positioning Accuracy ≤ ± 0.03mm
Beveling Positioning Accuracy ± 0.05 °
Control axis Quantity 8-axis 7 linkage
Control accuracy up to ±0.001mm



We warmly welcome customers to visit our factory at any time. No wait, please order now!
