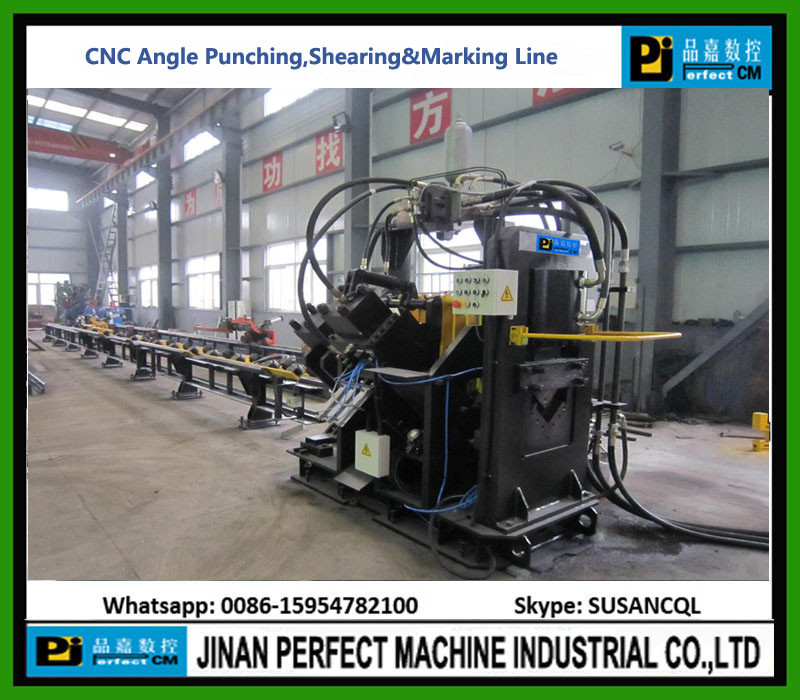

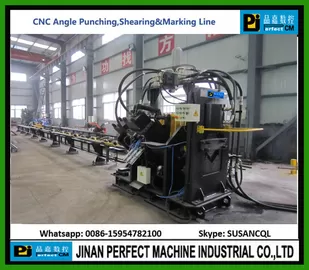

CNC Angle Punching Machine (Model BL1412)

CNC Angle Punching Machine (Model BL1412)

CNC Angle Punching Machine (Model BL1412)

Product Details:

Place of Origin: China
Brand Name: PERFECT
Certification: ISO9001-2008
Model Number: BL1412

Payment & Shipping Terms:

Price: USD
Packaging Details: STANDARD
Delivery Time: 10
Supply Ability: 1000
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Minimum Oeder Quantity: 1 Payment Terms: TT
Supply Aility: 10000
High Light:

cnc angle line


cnc punching machine


angle punching line

CNC Angle Marking, Punching And Shearing Line

Model BL1412

Technical Data:
1. Angle size: 40 x 40 x 3 -140 x 140 x 12
2. Max. Punching capability (D x T): 26 x 20
3. Punching nominal force (KN): 1000
4. Marking nominal force (KN): 630
5. Cutting nominal force (KN): 1400
6. Max. Workpiece length (m): 14
7. Adjustment range of stadim (mm): 20-170 (Stepless)
8. Punchers number in each side: 3
9. Marking groups: 4
10. Dimension of character: 14 x 10 x 20
11. Shearing mode: Double-blade cutting / Single Blade Cutting
12. CNC Axes number: 3
13. Infeed speed (m/min): 0-60
14. Overall dimension: 32x7x2.6
15. Net weight: 20000 kg

Technical Charecteristics:

1. Integrateded machine with mechanical, electrical and hydraulic elements;
2. Numerical controlling, three axes servo motor feeding;
3. Infinite gaugelines and no limits of the hole rows;
4. Imported electronic, hydraulic and pneumatic elements;
5. Easy programming, connectable with data files generated directly by copying the specimen;
6. Diagrammatic display of workpiece;
7. Adapted to angles with great bending deflection;

1. Rigid and compact structure
2. High productivity with automatic marking, punching, cutting off and stacking operations;
3. High meterial utilization with optimum pattering;
4. Low labour working strength and high precision of workpieces.
