Product Description

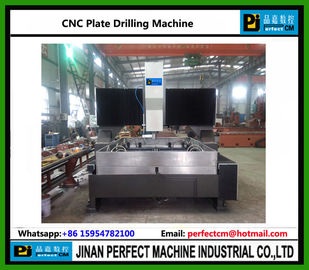

CNC Gantry Type Drilling Machine for Plate

(Model PD2010/PD2012/PD2016/PD3016)



Applicable Industry:

Special CNC machine for Drilling steel plates, flange and round plate in the field of steel structure industry. It is also used to drill steel plates of other industries.



Specifications:

Model PD2010 PD2012 PD2016   PD3016
Max Size Of Work Piece  L×W(Mm) 2000x1000 2000x1200 2000x1600 3000x1600
Max. Drilling Diameter (Mm) Φ50 Φ50 Φ50 Φ50
Max.Drilling thickness of plate (mm) 100 100 100 100
Drill Head Quantity  1 1 1 1
Power Of Main Motor (KW) 5.5 5.5 5.5 5.5
Spindle Speed 120～560  (Frequency Control) 120～560  (Frequency Control) 120～560  (Frequency Control) 120～560  (Frequency Control)
Drive Mode Of Gantry Longitudinal (X Axis) Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs.
Positioning Speed (mm/Min) 8000 8000 8000 8000
CNC Axis Quantity 3 3 3 3
Electric Control Type MISTUBISHI PLC MISTUBISHI PLC MISTUBISHI PLC MISTUBISHI PLC
Total Weight  (kgs) 5200 6200 7200 8200

Overall Dimensions (L×W×H ) mm

 3000×1950×2790 33000×2150×2790 3000×2420×2790 5470x2610x2855
