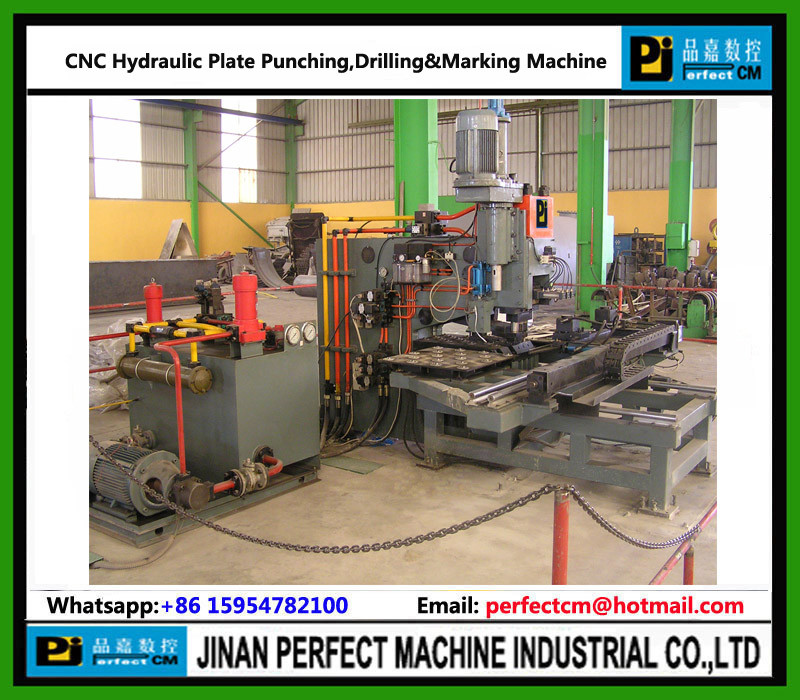

CNC Hydraulic Plate Punching and Drilling Machine
|Minimum Oeder Quantity||1||Payment Terms||TT|
cnc punching machine,
plate punch machine
CNC HYDRAULIC PUNCHING, Drilling & MARKING MACHINE FOR PLATES
Special CNC machine for punching and marking of steel plates in the field of steel tower industry. It is also used to punch and mark of steel plates of other industries.
Max size of work piece LW(mm) 1500X800; 1500X1000
Max. punching diameter (mm) 26
Plate punching thickness (mm) 5-25 (Q235)
Punching force (kN) 1000
Marking force (kN) 800
Min. distance between hole and plate edge (mm) 25
Character size(mm) By customers request
No. of character 1018
Precision Accordance with GB2694
Programming mode Input by keyboard, RS232 interface, floppy disk and USB interface
Overall dimensions LWH (mm) 3200X3000X1900; 3500X3000X1900
Machine weight (kg) 5420; 5800
