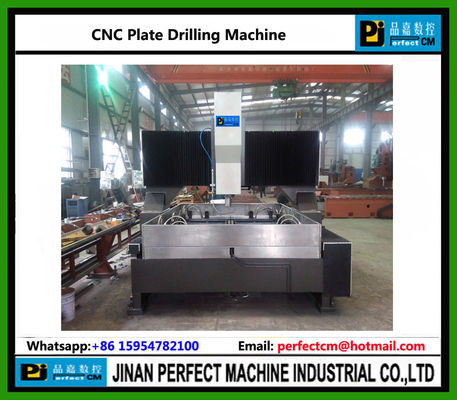

Movable Gantry Type CNC Drilling Machine for Plate

Movable Gantry Type CNC Drilling Machine for Plate

Movable Gantry Type CNC Drilling Machine for Plate

Product Details:

Place of Origin: China
Brand Name: PERFECT
Certification: ISO9001-2008
Model Number: PD2012

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Packaging Details: STANDARD
Delivery Time: 10
Supply Ability: 100
Contact Now
Detailed Product Description
Minimum Oeder Quantity: 1 Payment Terms: TT
Supply Aility: 10000
High Light:

straightening machine cnc angle line power transmission tower line

,

cnc punching machine cutting machine marking machine

,

cnc drilling machine shearing machine notching machine

Gantry Type CNC Drilling Machine for Plate/Flange



This machine aims to drilling holes on the metal plate/Flange of building steel structure, power iron tower and petrochemical equipment. It adopts gantry type structure. The axis X, Y and Z are drove by servo motor through precise ball guide screw. It positions automatically, precisely and quickly and finishes the processing of drilling automatically. Therefore, it highly improves the precision and speed. Meanwhile, it avoids repairing and scraping caused by manual position or drilling error.

Specification:

Name

Specifications

Machine Type

Gantry Movable Single Spindle CNC Drilling Machine

Model

PD2010

PD2012

PD2016

PD3016

Max Work Piece Size (L×W)

One Piece

2000×1000

2000×1200

2000×1600

3000x1600

Two Pieces

1000×1000

1000×1200

1600×1000

1600x1500

Four Pieces

1000×500

1000×600

800×500

1500x800

Thickness Of Work Piece

15~100mm

Height From Table Top To Ground

800mm

Drill Unit Type

Sliding Table, Servo Control

Clamp Type

Hydraulic Clamp With 12 Clamps

Drill Head Quantity

1

Drill Diameter

Φ12mm-Φ50mm

Power Of Main Motor

5.5 Kw

Spindle Speed

120560r/Min (Frequency Control)

Drive Mode Of Gantry Longitudinal (X Axis)

Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs.

Servo Motor Power Of X Axis

1.3 Kw

Power Head Lateral Driving Type (Y Axis)

Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs.


We welcome customers inquiry at any time. No wait, please order now!

Should Your Excellency need more information about us, please send us your inquiry.

Skype: susancql

Mobile: 0086-15954782100 (What'sapp)

GTalk: jnfastcnc

E-mail: chengsusan2004 at hotmail.com


Thanks and Best Regards,


Ms. Susan

Director
