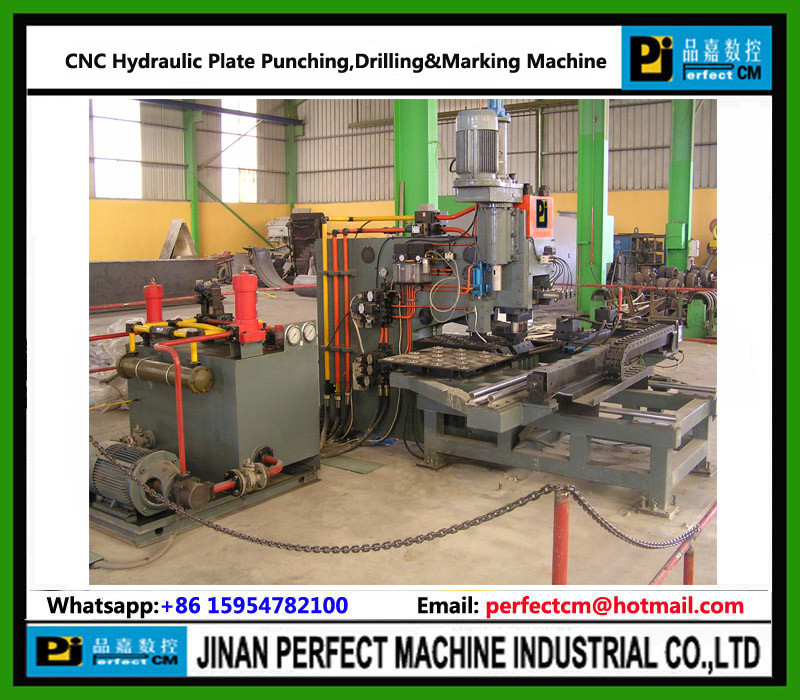

CNC Hydraulic Punching, Drilling & Marking Machine for Plates
Applicable Industry:
Special CNC machine for punching and marking of steel plates in the field of steel tower industry. It is also used to punch and mark of steel plates of other industries.
Specification:
Model |
PPD103 |
PPD104 |
PPRD103 |
PPRD104 |
|
||||||
Max size of work piece L×W(mm) |
1500×800 |
1500×1000 |
1500×800 |
1500×1000 |
|
||||||
Max. diameter of punching (mm) |
Φ26 |
|
|||||||||
Plate thickness of punching (mm) |
5~20 (Q235) 5~16 (Q345) |
5~25 (Q235) 5~20 (Q420, 16Mn) |
|
||||||||
Max. diameter of drilling (mm) |
Φ50 |
|
|||||||||
Plate thickness of drilling (mm) |
40 |
|
|||||||||
Punching force (kN) |
1000 |
|
|||||||||
Marking force (kN) |
800 |
1000 |
|
||||||||
Min. distance between hole and plate edge (mm) |
Punching |
25 |
|
||||||||
Drilling |
Depends on hole diameter |
|
|||||||||
Dimensions of characters (mm) |
14×10×19 |
14×10×19/ 20×12×19 |
|
||||||||
Quantity of characters |
12 |
16 |
|
||||||||
Die-stations |
4 |
|
|||||||||
Feeding speed of drilling(mm/min) |
25~280 |
|
|||||||||
Stroke of drilling spindle(mm) |
180 |
|
|||||||||
Rotation speed of drilling spindle(r/min) |
120~560 |
|
|||||||||
Precision |
Accordance with GB2694 |
|
|||||||||
Programming mode |
Input by keyboard, RS232 interface, floppy disk and USB interface |
|
|||||||||
|
Overall dimensions L×W×H (mm) |
3200×3200×2600 |
3200×3400×2600 |
3200×3700×2700 |
3200×3900×2700 |
||||||
|
Weight of machine (kg) |
Approx. 5800 |
6000 |
7000 |
7500 |
