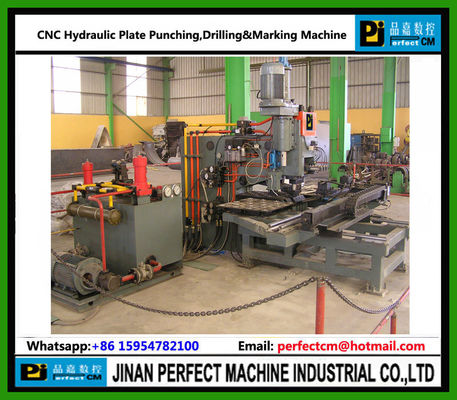

CNC Hydraulic Plate Punching, Drilling & Marking Machine

Place of Origin China
Brand Name FASTER
Certification ISO9001-2008
Model Number PP103/PP104
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
High Light

cnc drilling machine

,

cnc punch machine

,

plate drilling machine

Leave a Message
Product Description

CNC HYDRAULIC PUNCHING & MARKING MACHINE FOR PLATES



Applicable Industry

Special CNC machine for punching and marking of steel plates in the field of steel tower industry. It is also used to punch and mark of steel plates of other industries.



SPECIFICATIONS

Model TP103/PP104

Max size of work piece LW(mm) 1500x800; 1500x1000
Max. punching diameter (mm) 26
Plate punching thickness (mm) 5-25 (Q235)
Punching force (kN) 1000
Marking force (kN) 800
Min. distance between hole and plate edge (mm) 25
Character size(mm) By customers request
No. of character 1018
Die-stations 3
Precision Accordance with GB2694
Programming mode Input by keyboard, RS232 interface, floppy disk and USB interface
Overall dimensions LWH (mm) 3200x3000x1900; 3500x3000x1900
Machine weight (kg) 5420; 5800

We welcome customers to visit our factory at any time. No wait, please order now!

Should Your Excellency need more information about us, please send us your inquiry.

Skype: susancql

Mobile: 0086-15954782100

GTalk: jnfastcnc

E-mail: chengsusan2004 at hotmail.com

Thanks and Best Regards,

JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
