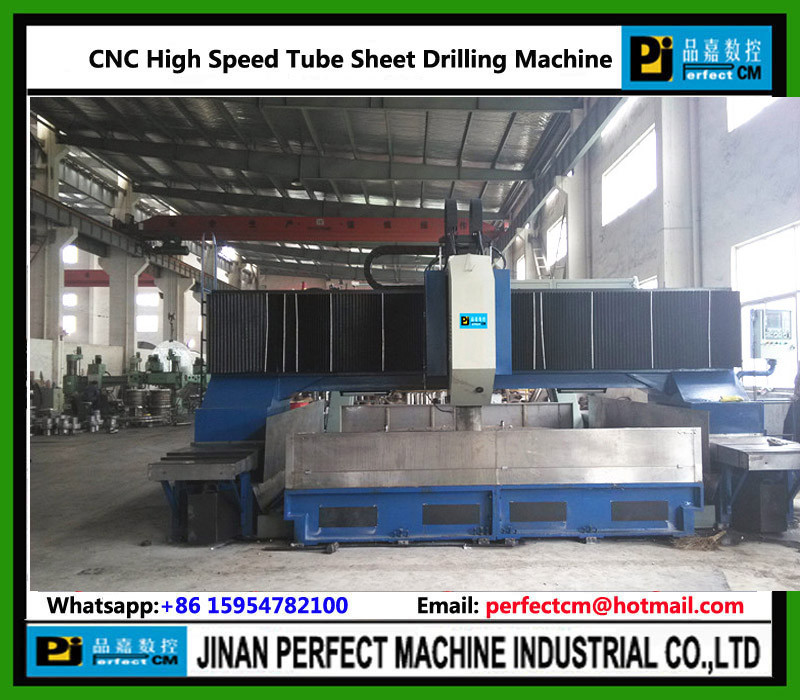

High Speed CNC Drilling Machine for Tube Sheet

Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number PHD3030
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
High Light

cnc drilling machine


tube sheet drilling machine


tube plate drilling machine

Leave a Message
Product Description

High Speed CNC Drilling Machine for Tube Sheet


Model PHD3030-2


Applicable Industry:


Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. And large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.

Technical data, please check the following form:

Name of parameter Item Value
Max. distance between hole centers Length Width 3000X3000mm
Max. thickness of workpiece   250mm
Worktable Width of T-slot 28mm
Vertical ram type drilling head Quantity 2
Morse Taper BT50
Max .drilling diameter. (Normal carbon steel) 40mm(Carbide drill head)
50mm(High-speed steel twist drilling head
Drill depth/drill diameter 5(Carbide drill head)
Rotation speed of spindle(stepless frequency conversion) 30_2400r/min


Should Your Excellency need more information about us, please send us your inquiry.


We warmly welcome customers to visit our factory at any time. No wait, please order now!
